Manufacturer:Allen Bradley
Model Number:1746-IG16
Analog Input Channel:16
Common Mode Voltage Range:-20 to +20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)
Input Range:-20 to +20 mA
Absolute Input Current:-30 to +30 mA (Max.)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Power Consumption:35 mA @ 5 V, 85 mA @ 24 V
Operating Temperature:-40°C to +70°C
Environmental Conditions:Humidity: 5 to 95% non-condensing
Certifications:CE, UL, CSA

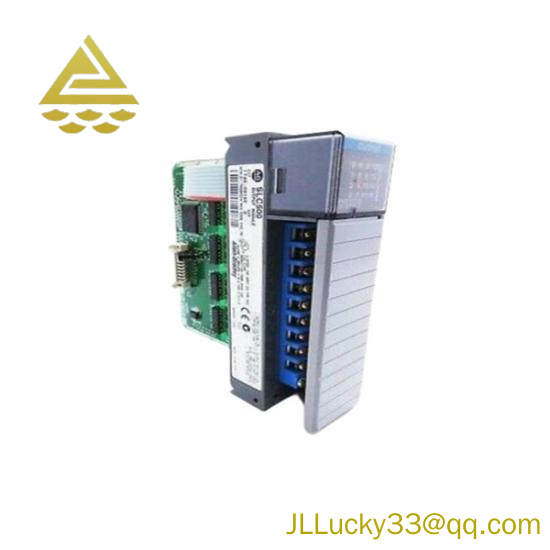

Engineered for reliability and durability, the AB 1746-IG16 Input Module is an indispensable component for industrial control systems. Its 16-channel digital input design allows for the seamless integration of various sensors, providing accurate and timely data for process control applications.
With a response time of ≤ 1 ms, this module ensures that critical operations are executed with precision, enhancing overall system efficiency and performance. The high load capacity of up to 250 mA per channel ensures compatibility with a wide range of industrial equipment.
Operational in extreme temperatures from -20°C to +60°C, this module is ideal for installations in harsh industrial environments. Its IP20 protection class safeguards against dust and light splashes, ensuring continuous operation under varying conditions.
Compliant with Modbus RTU communication protocol, the AB 1746-IG16 facilitates easy integration with existing automation networks, simplifying the setup and management of complex systems. This makes it a versatile choice for modern manufacturing and production lines.
Crafted from high-quality materials, the module boasts a compact and lightweight design, making it easy to install and maintain within limited spaces. Its straightforward configuration and intuitive interface enable users to optimize their systems quickly and efficiently, streamlining daily operations.
