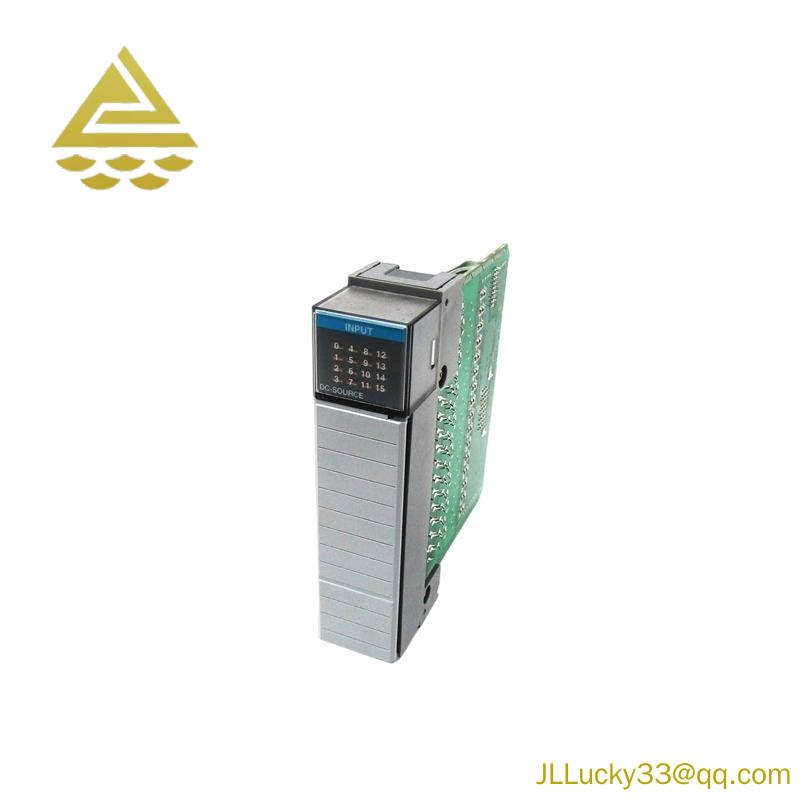

AB 1746-IV16 Analog Input Module

Product Type:Analog Input Module

Manufacturer:ABB

Model Number:1746-IV16

Series:SLC 500

Module Type:Digital DC Sinking Input

Number of Inputs:16

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    The ABB AB 1746-IV16 Analog Input Module is designed to meet the demanding requirements of industrial control environments. Its high resolution ensures accurate signal acquisition, crucial for maintaining system reliability and efficiency.

    Featuring 16 digital DC sinking inputs, this module is capable of handling a wide range of input voltages from 10 to 30 volts DC, making it suitable for various industrial applications.

    With overvoltage protection at 7.5 volts AC RMS, the module safeguards against voltage spikes, ensuring continuous operation without interruption.

    The ABB AB 1746-IV16 supports a diverse range of input currents, ranging from -30 to 30 milliamps, providing flexibility for different signal sources and ensuring compatibility across various equipment.

    Equipped with advanced isolation technology, this module ensures electrical safety by maintaining a safe separation between input and output circuits, reducing the risk of electrical interference.
