Number of Channels:8
Signal Type:Analog
Sampling Rate:Up to 1 kHz
Accuracy:±0.1% of full scale
Power Supply:12 to 24 VDC
Operating Temperature:-40°C to +70°C
Connection Type:Terminal Block
Dimensions:85mm x 54mm x 31mm
Weight:Approx. 120g

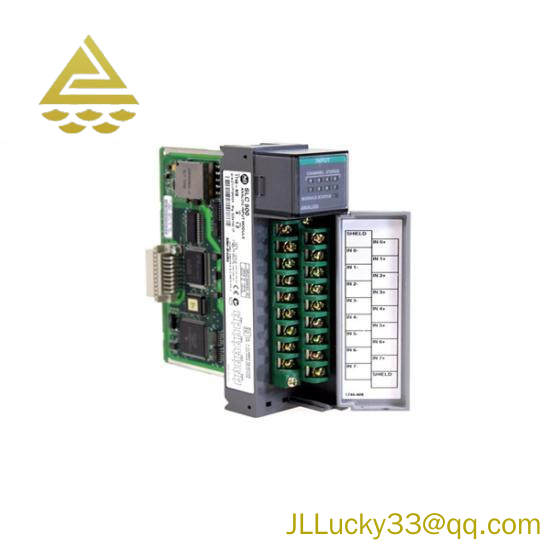

The Allen-Bradley 1746-NL8 Analog Input Module is engineered to offer unparalleled precision and reliability in industrial automation scenarios. Its robust design ensures accurate signal acquisition from sensors, making it an indispensable component in complex control systems.
With 8 channels of high-resolution input capability, this module caters to a wide range of applications requiring precise analog signal monitoring and control. Its ability to handle a broad common mode voltage range ensures compatibility with diverse sensor outputs.
Featuring exceptional isolation capabilities, the 1746-NL8 is designed to safeguard against electrical interference, ensuring stable operation even in challenging industrial environments. This feature is crucial for maintaining system integrity and performance.
The module supports ±7.5 VDC or 7.5 VAC RMS maximum input voltage, providing flexibility in integrating with various power supplies. Its input range of -20 to 20 mA ensures accurate readings across a wide spectrum of signals, enhancing the versatility of its application.
Designed with user convenience in mind, the Allen-Bradley 1746-NL8 offers ease of installation and integration with existing Allen-Bradley control systems. Its compact size and open enclosure facilitate seamless deployment in confined spaces without compromising on functionality.
