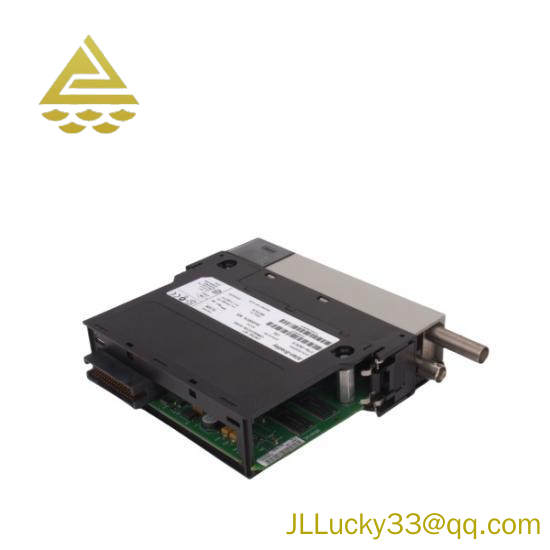

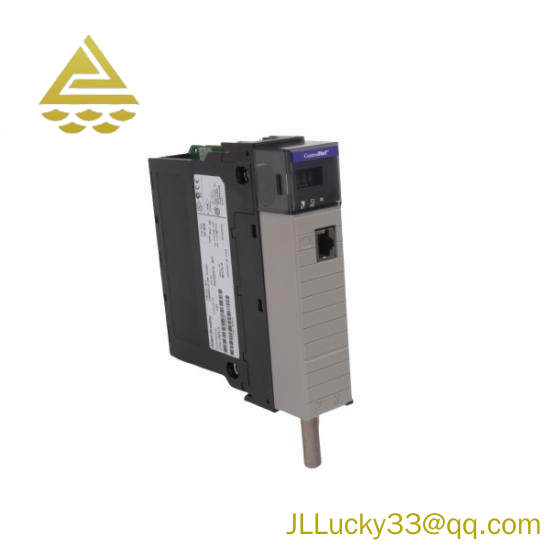

AB 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module

Model Type:Redundant Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CN2R/B

Communication Interface:ControlNet

Number of Channels:2

Current Rating:Drawn: 970 MA at 5.1 VDC, 1.7 MA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Mounting:Chassis

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 1890 MHz, 3 V/M with 1 KHZ sine-wave 80% AM from 2000 – 2700 MHz

Temperature Rating:32 – 140 DEG F

Operating Voltage:Not specified

    This redundant bridge module from Allen-Bradley seamlessly integrates with ControlLogix systems, enhancing network reliability and system availability.

    Featuring dual-channel design, it ensures continuous operation even in case of a single failure, guaranteeing mission-critical applications without interruption.

    With its robust enclosure and advanced RF interference suppression technology, this module is engineered to withstand harsh industrial environments, ensuring stable performance under various conditions.

    The AB 1756-CN2R/B is compatible with a wide range of ControlNet devices, facilitating seamless integration within existing automation networks.

    Ideal for applications requiring high-speed data transfer and redundancy, this module supports ControlNet A/B communication paths, providing fail-safe operation in critical manufacturing processes.
