Model Type:ControlLogix
Model Number:1756-IF16H
Manufacturer:Allen-Bradley
Input Points:16
Input Types:Single-ended & Differential
Input Range:4 to 20mA, 0 to 5VDC
Power Consumption:Less than 1W
Communication Interface:ControlNet
Environmental Rating:IP20
Mounting Style:Panel
Weight:Approximately 0.2kg
Dimensions (LxWxH):100mm x 60mm x 120mm

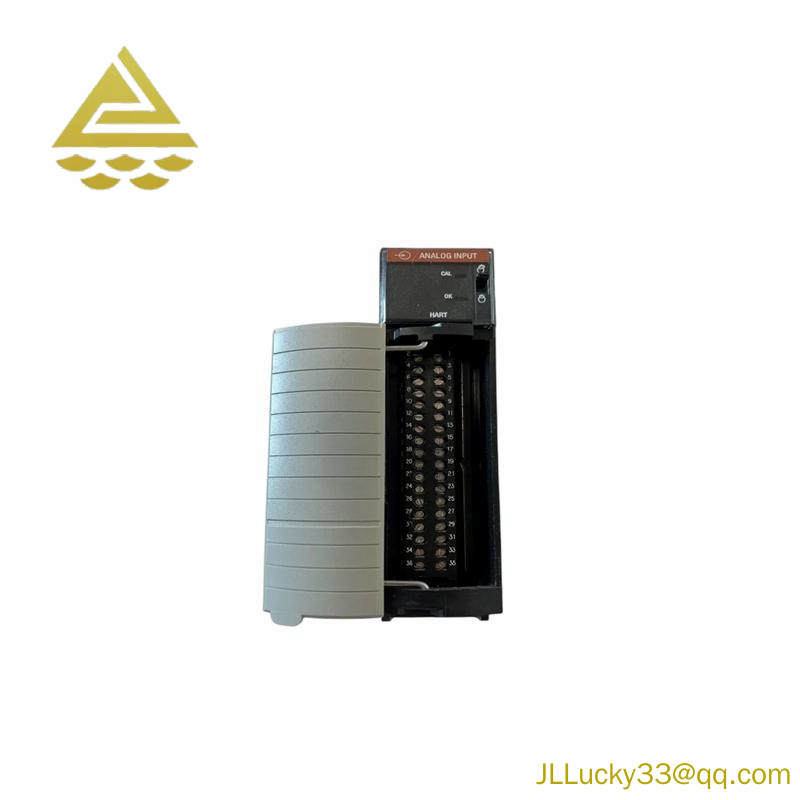

The AB 1756-IF16H ANALOG INPUT MODULE is a critical component in any industrial automation system, designed to provide accurate and reliable data acquisition for various control applications. Its 16-point capacity ensures robust connectivity to a wide range of sensors and actuators.
This module supports both single-ended and differential inputs, providing flexibility in connecting different types of sensors. The ability to handle up to 8 high-speed differential inputs makes it particularly suitable for high-frequency signal processing, enhancing the responsiveness and precision of control systems.
With support for current and voltage signals, the 1756-IF16H is versatile enough to interface with a multitude of sensors and measurement devices, making it an ideal choice for diverse industrial environments. It is specifically engineered for use in ControlLogix systems, ensuring seamless integration and optimal performance within these platforms.
Built to withstand extreme environmental conditions, this module operates reliably from -40°C to +70°C, ensuring continuous operation in harsh industrial settings. Its compact design minimizes space requirements, making it suitable for even the most constrained industrial layouts.
Installation and maintenance are straightforward due to its plug-and-play design, reducing downtime and facilitating quick setup. The AB 1756-IF16H ANALOG INPUT MODULE is a testament to Allen-Bradley’s commitment to delivering high-quality, reliable products that meet the stringent demands of modern industrial automation.
