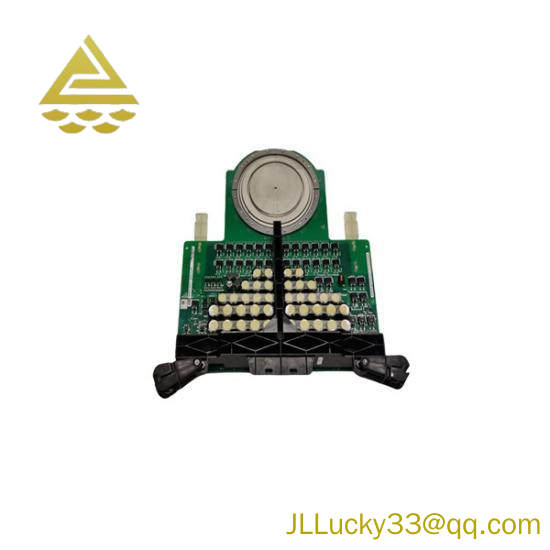

Product Type:IGCT Module
Module Class:High-Power
Manufacturer Part Number:3BHB003154R0101, 5SXE030141, 5SGX2645L0004, 3BHL000390P010
Maximum Power Handling:Up to 10 MW
Operating Voltage:15 kV
Operating Current:10 kA
Switching Frequency:Up to 1 kHz
Cooling Method:Water-cooled
Dimensions (WxHxD):200 x 500 x 500 mm
Weight:150 kg
Environmental Conditions:Operable from -40°C to +60°C
Certifications:CE, UL, IEC, ISO 9001
This ABB IGCT module is engineered to withstand demanding conditions, featuring a compact yet durable design that ensures longevity and reliability in continuous operation. The advanced cooling system optimizes performance by efficiently managing heat dissipation, allowing for extended service life without overheating concerns.
With a wide operating voltage range and high current capability, this module is suitable for a variety of industrial applications, including power electronics, renewable energy systems, and electric drives. Its high switching frequency enables precise control and minimizes energy loss, contributing to overall system efficiency.
Safety is a top priority with the Class 1 insulation level, ensuring protection against electrical hazards. The module’s material selection includes high-grade copper and silicon steel, providing strength and conductivity necessary for reliable operation.
For installation and maintenance, the ABB IGCT module incorporates user-friendly features such as modular design for easy replacement and standardized interfaces for seamless integration into existing systems. Comprehensive documentation and support resources are provided to facilitate quick setup and minimize downtime.
Designed to enhance the operational capabilities of industrial control systems, this ABB IGCT module is a testament to the company’s commitment to innovation and quality. Its robust performance and reliability make it an indispensable component for achieving optimal control and efficiency in various industrial sectors.
