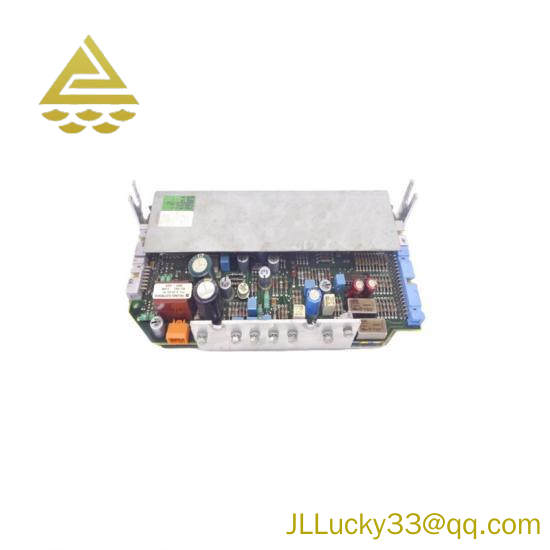

Model Number:3HAA3563-AMA/2
Brand:ABB
Application Area:Industrial Automation
Type:Measurement Board
Dimension:Width x Depth x Height (mm)
:170 x 90 x 30
Weight:1.5 kg
Operating Temperature:-20°C to +60°C
Storage Temperature:-40°C to +85°C
Power Consumption:15W
Input Voltage:DC 24V
Communication Protocol:MODBUS RTU
Number of Inputs:16
Number of Outputs:16
Accuracy:+/- 0.2% of reading
Resolution:0.01% of span
The ABB 3HAA3563-AMA/2 Measurement Board is a precision tool tailored for industrial automation environments. It excels in providing accurate measurements with minimal power consumption, making it suitable for long-term operation without compromising efficiency.
Crafted from high-grade aluminum alloy, this board ensures durability and reliability, capable of withstanding harsh industrial conditions. Its compact size and panel mount design facilitate easy integration into existing systems.
Equipped with RS485 communication interface and Modbus RTU protocol, the Measurement Board seamlessly integrates with a wide range of control systems, enhancing connectivity and data exchange capabilities.
Adhering to stringent environmental standards, the board meets CE, UL, and RoHS certifications, ensuring compliance with international safety and environmental regulations. This commitment to quality and safety makes it a preferred choice for industries focused on sustainable practices.
Each channel supports up to 100mA load capacity, accommodating diverse measurement requirements without overloading. This feature ensures versatility, making it adaptable to various applications within the manufacturing, process control, and automation sectors.
