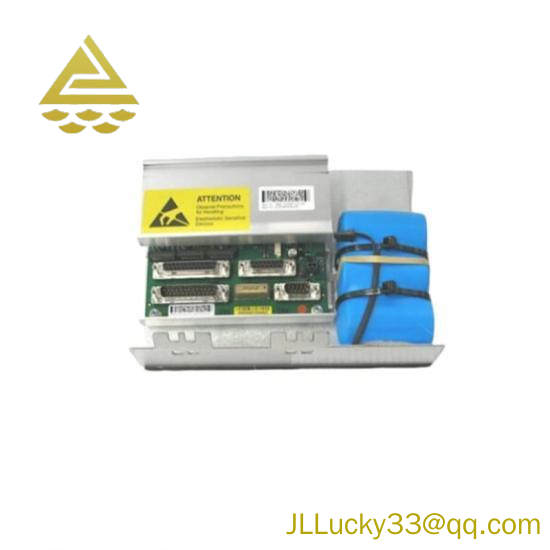

Model:3HAC020630-001
Manufacturer:ABB
Type:Serial Measurement Unit
Application:DCS Module
Operating Range:0-5 V, 4-20 mA
Communication Protocol:Modbus RTU
Data Transfer Rate:9600 bps
Power Supply:24 VDC
Input Capacity:16 channels
Output Capacity:16 channels
Environmental Conditions:Operating Temperature: -20°C to +70°C, Storage Temperature: -40°C to +85°C
Dimensions:205mm (L) x 55mm (W) x 32mm (H)
Weight:0.15kg
This serial measurement unit is specifically engineered for applications requiring precise and reliable data acquisition in harsh industrial environments. It features robust construction and high-quality materials to withstand the demands of continuous operation.
With its advanced RS-485 interface supporting up to 1 Mbps data transfer rates, it ensures efficient communication between the DCS and remote sensors or actuators. The 4-channel analog inputs can measure voltage, current, and resistance, while the 8-channel digital I/O provides flexible control over processes.
The unit is equipped with a wide operating temperature range, making it suitable for installations in various climates. Its compatibility with Modbus RTU protocol allows seamless integration into existing control systems, enhancing system interoperability.
Energy efficiency is a key aspect of this module, with a low power consumption ensuring minimal impact on overall system power usage. This not only reduces energy costs but also extends the life of the batteries if used in battery-powered applications.
Designed for ease of use, the ABB 3HAC020630-001 Serial Measurement Unit DCS Module comes with clear documentation and comprehensive technical support, ensuring quick and smooth installation and maintenance.
