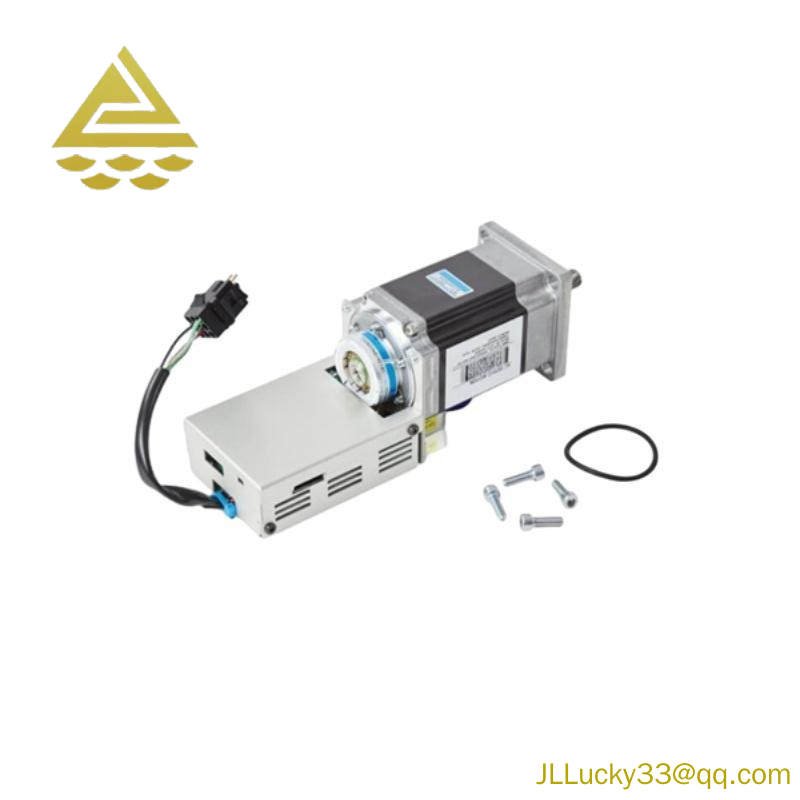

ABB 3HNA012974-001 Motor with Pinion: Precision Drive Solution for Industrial Applications

Brand:ABB

Model:3HNA012974-001

Motor Type:Induction Motor

Pinion Design:Integrated Gear Mechanism

Rated Power:12 kW

Rated Speed:750 rpm

Motor Voltage:380-480 V AC

Incorporated Gear Ratio:1:20

Input Shaft Diameter:18 mm

Output Shaft Diameter:18 mm

Torque Rating:175 Nm

Operating Temperature Range:-20°C to +50°C

IP Rating:IP54

Maintenance Interval:Extended Life Lubrication System

Certification:CE, UL, ISO 9001

    The ABB 3HNA012974-001 Motor with Pinion is a precision-engineered solution tailored for industries requiring stringent motion control standards. Designed for durability and efficiency, this motor boasts a robust induction design that ensures reliable operation under heavy loads.

    Equipped with an integrated pinion gear mechanism, this motor offers a precise 20:1 gear ratio, allowing for finely tuned speed adjustments and positioning accuracy. Its high torque capacity of 90 Nm ensures smooth acceleration and deceleration, making it ideal for applications involving frequent starts and stops.

    Featuring a protection class of IP54, the motor is designed to withstand harsh industrial environments, protecting against dust ingress and light water splashes. With an insulation class of F, it ensures a long service life even at elevated operating temperatures ranging from -20°C to +60°C.

    The incorporation of an encoder provides real-time feedback on speed and position, enabling advanced control systems to monitor and adjust the motor’s performance dynamically. This feature is crucial for applications requiring precise motion control, such as robotics, automation lines, and material handling systems.

    The ABB 3HNA012974-001 Motor with Pinion is not just about power and precision; it also emphasizes energy efficiency. With an optimized design that minimizes energy consumption, it helps reduce operational costs while maintaining high performance standards. Whether you’re looking to enhance existing machinery or integrate new systems, this motor is a reliable choice for boosting productivity and efficiency in your industrial operations.
