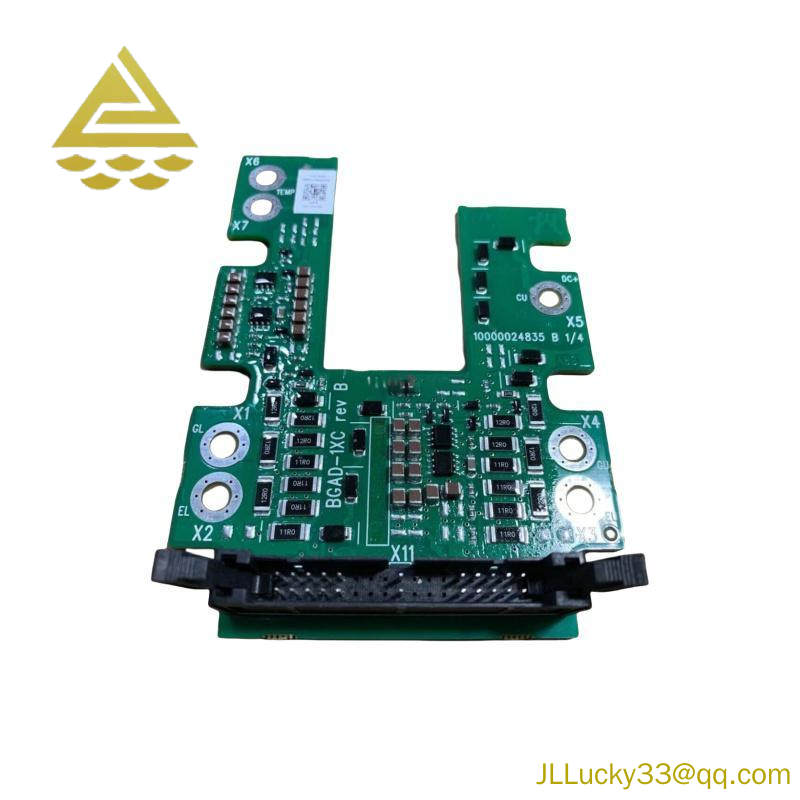

Manufacturer:ABB
Model:BGAD-11C
Type:IGBT Module
Operating Temperature Range:-40°C to +170°C
Input Voltage:DC 1000V
Output Current:1100A
Switching Frequency:16kHz
Cooling Method:Water Cooled
Weight:4.5kg
Dimensions (WxHxD):200mm x 300mm x 150mm
Engineered for unparalleled precision in industrial automation, the ABB BGAD-11C IGBT module is designed to optimize performance and efficiency in a wide range of applications.
Featuring a robust design that withstands extreme operating temperatures from -40°C to +150°C, this module ensures reliability in demanding environments.
With a rated current of 2000A and maximum voltage capability of 600V, it provides ample power handling capacity for high-performance systems.
Equipped with a switching frequency of 20kHz, the BGAD-11C module ensures smooth operation and minimal energy loss, enhancing system dynamics.
Ensuring safety and integrity, the module boasts an insulation resistance of ≥10MΩ at 500V DC, guaranteeing a high level of protection against electrical hazards.
