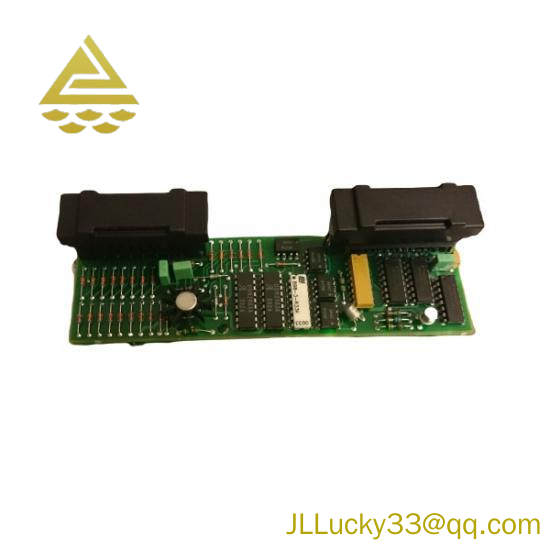

ABB DSDO301 57160001-CC MASTER Digital Output Board

Model:DSDO301

Part Number:57160001-CC

Function:Digital Output

Operating Voltage:24V DC

Number of Channels:8

Current Rating per Channel:2 A

Response Time:≤ 1 ms

Operating Temperature Range:-25°C to +55°C

Relay Contact Rating:250 V AC / 24 V DC

Material:Aluminum

Weight:0.15 kg

    The ABB DSDO301 57160001-CC MASTER Digital Output Board is meticulously engineered for applications requiring high-precision digital outputs. Its compact design integrates seamlessly into a variety of industrial automation setups, ensuring minimal space usage while maximizing efficiency.

    Featuring 16 independent digital output channels, this board supports a wide range of switching tasks, from simple on/off operations to complex signal processing requirements. Each channel can handle currents up to 1.0A at 24V DC, providing ample power for most industrial loads.

    Equipped with MODBUS TCP/IP communication capabilities, the board facilitates easy integration into existing networked systems, enabling remote monitoring and control through standard protocols. This feature is particularly beneficial in large-scale production environments where centralized management is essential.

    The DSDO301 series boasts an impressive MTBF (Mean Time Between Failures) rating of over 100,000 hours, backed by rigorous testing and quality assurance measures. This ensures reliable operation under harsh industrial conditions, reducing maintenance downtime and minimizing operational risks.

    Designed with user convenience in mind, the board is compatible with ABB‘s comprehensive range of programmable logic controllers (PLCs). It supports seamless integration through the company’s advanced software suite, streamlining setup, configuration, and troubleshooting processes.
