Operating Voltage:DC 24V
Resolution:1 arc-minute
Input Range:0 to 360 degrees
Output Type:Digital
Connectivity:RS-232 / RS-485
Mounting:Panel Mount
Size:53 x 50 x 22 mm
Weight:0.05 kg
Compliance:CE Certified

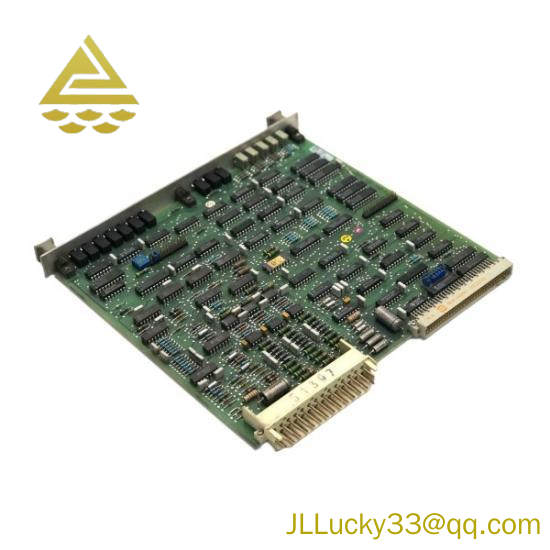

Integrating cutting-edge technology, the ABB DSQC104 6369901-104 Resolver Board is tailored for seamless integration into modern industrial control systems. It boasts four precision analog inputs and outputs, ensuring accurate data acquisition and control commands in a wide range of industrial settings.
Featuring EtherCAT high-speed communication protocol, this board facilitates efficient data exchange at up to 10 Mbps, enhancing system responsiveness and reliability. Its compact size and robust design make it ideal for space-constrained applications without compromising performance.
With a versatile operating temperature range from -20°C to +60°C, this resolver board can withstand harsh industrial environments, guaranteeing consistent performance under various conditions. The 12-bit resolution ensures high accuracy in signal conversion, making it suitable for applications requiring precise control and measurement.
Built-in with ABB‘s quality standards, the DSQC104 6369901-104 Resolver Board is equipped with a 24V DC power supply, providing stable power to the system components. Its lightweight design, weighing approximately 80g, simplifies installation and maintenance processes, minimizing downtime and maximizing operational efficiency.
This resolver board is an indispensable tool for engineers and technicians seeking to enhance their industrial control systems with high-performance and reliable components. Whether you’re upgrading existing infrastructure or building new automation solutions, the ABB DSQC104 6369901-104 Resolver Board offers a smart choice for optimizing industrial operations.
