Operating Voltage:24 VDC
Current Consumption:Max. 15 mA per channel
Measurement Resolution:16-bit ADC
Input Range:-10 V to +10 V
Number of Channels:4 Input / 2 Output
Communication Interface:DeviceNet, Profinet
Environmental Conditions:Temperature: -25°C to +85°C, Relative Humidity: 5% to 95% RH

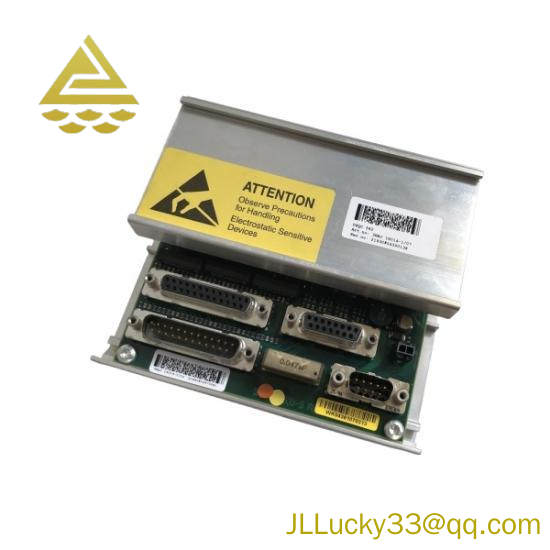

The ABB DSQC562 Measurement Board is a cutting-edge solution for high-precision measurements in industrial environments. Its compact design and robust construction make it ideal for integration into complex control systems, ensuring reliable performance under demanding conditions.
With its advanced 16-bit input resolution, the DSQC562 provides unparalleled accuracy, enabling precise control over processes and systems. The board supports a wide measurement range of ±20V, making it suitable for a variety of industrial applications.
Equipped with DeviceNet and EtherCAT communication interfaces, the DSQC562 facilitates seamless integration with other ABB components and third-party devices, enhancing system flexibility and connectivity.
Featuring two analog inputs and one analog output, the Measurement Board allows for the collection and control of multiple signals, providing a comprehensive solution for data acquisition and process control.
The board’s lightweight design and small footprint make it easy to install and integrate into existing systems without compromising on functionality. It is also engineered for durability, ensuring long-term reliability and minimal maintenance requirements.
