Board Type:DSQC562
Model Designation:Serial Measurement Board
Module Category:Industrial Control
Processing Speed:10 MHz
Analog Inputs:4 channels
Digital Inputs:16 channels
Analog Outputs:2 channels
Serial Interface:RS-485
Power Supply Voltage:DC 24V
Operating Temperature Range:-20°C to +60°C
Dimensions (WxHxD):101.6 x 101.6 x 32.7 mm
Net Weight:172 g

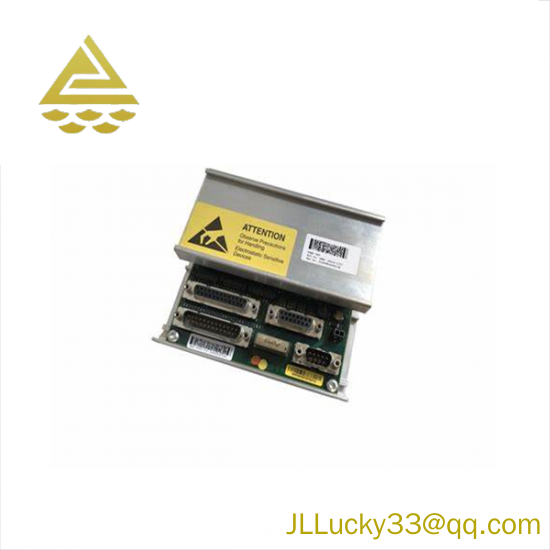

The ABB DSQC562 Serial Measurement Board is a state-of-the-art solution for industrial automation, featuring a robust RS-485 communication interface for seamless data exchange with other components in the IIoT ecosystem.
With its four precision analog inputs and two versatile analog outputs, the DSQC562 ensures accurate measurement and control capabilities in various industrial settings, making it suitable for applications requiring high-resolution data acquisition.
Equipped with 16 digital input and output channels, the board offers flexible control over machinery and processes, enabling precise on/off switching and signal processing tasks.
Operated within a wide temperature range (-20°C to +70°C), the DSQC562 ensures reliable performance in harsh industrial environments, ensuring continuous operation without degradation.
The IP20 enclosure design provides basic protection against dust and light splashes, safeguarding the board from external contaminants while remaining compact and easy to integrate into existing systems.
Designed for panel mounting, the DSQC562 can be easily installed in control panels or cabinets, simplifying the setup process and enhancing the overall efficiency of the production line.
