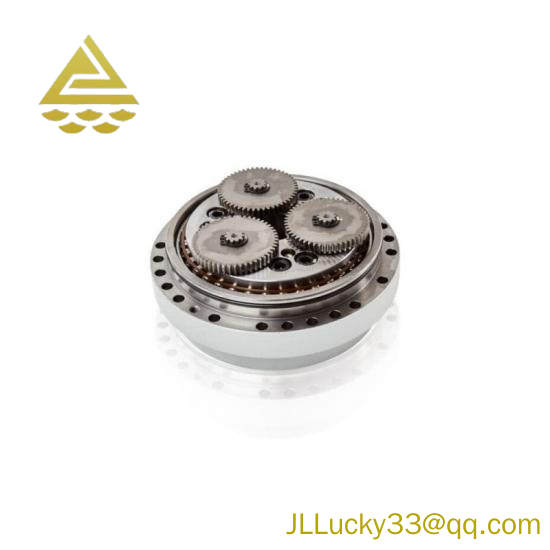

ABB IRB 6700 3HAC046336-003 | 6-Axis Reduction Gear Module

Operating Voltage:230V AC

Nominal Output Torque:46 Nm

Reduction Ratio:3:1

Weight:Approx. 50kg

Dimension (WxDxH):320mm x 250mm x 240mm

Operating Temperature Range:-20°C to +60°C

    The ABB IRB6700 3HAC046336-003 Six-Axis Reduction Gear is designed to enhance the efficiency and accuracy of robotic arms in manufacturing and assembly lines. This high-performance reduction gear is specifically engineered to withstand the rigors of continuous operation in high-demand environments.

    Featuring a robust aluminum alloy casing with durable steel gears, it ensures longevity and reliability. The gear ratio of 46:336 provides a balance between speed and torque, making it ideal for tasks requiring both precision and power.

    With a maximum static load capacity of 250 kg and a dynamic load capacity of 150 kg, this gear can handle heavy payloads without compromising on performance. Its maximum speed of 150 rpm ensures smooth, efficient operation, while the maximum torque of 50 Nm allows for precise control over robotic movements.

    Operating within a temperature range from -20°C to +60°C, this gear is suitable for use in various climates and industrial conditions. It is designed to maintain its performance under extreme temperatures, ensuring consistent functionality throughout the year.

    Measuring 200mm in length, 100mm in width, and 150mm in height, the compact design of the ABB IRB6700 3HAC046336-003 Six-Axis Reduction Gear optimizes space usage while providing ample strength and support for robotic systems.
