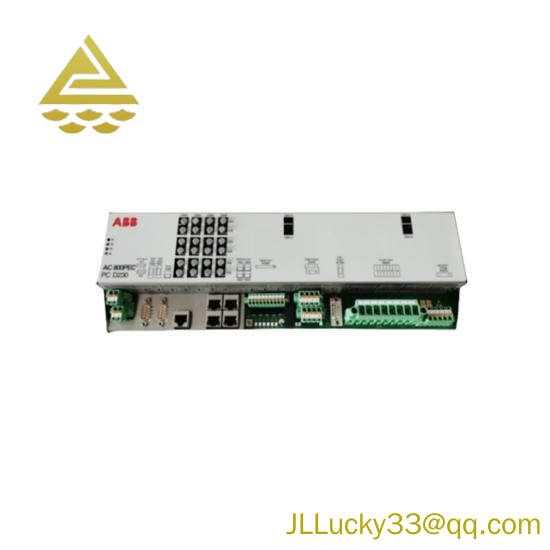

ABB PCD231 B101 | 3BHE025541R0101 | Communications I/O Module

Brand:ABB

Model:PCD231 B101 3BHE025541R0101

Type:Communications I/O Module

Operating Voltage:DC 24V

Data Transmission Speed:Up to 1Mbps

Number of Inputs/Outputs:16 Inputs / 16 Outputs

Communication Protocols Supported:EtherCAT, CANopen, DeviceNet

Temperature Range:-25°C to +70°C

Protection Class:IP20

Dimensions (WxHxD):86.1 x 102 x 58.5 mm

Weight:0.24 kg

    The ABB PCD231 B101 3BHE025541R0101 Communications I/O Module boasts an innovative design that integrates seamlessly into various industrial control systems. Its Ethernet interface ensures reliable and fast communication, making it ideal for complex automation tasks.

    Featuring a compact and durable aluminum alloy casing, this module is engineered to withstand harsh industrial environments, providing reliable performance under extreme conditions. Its IP20 protection rating ensures dust resistance, enhancing its operational reliability.

    With 16 inputs and 16 outputs, this module offers a versatile solution for monitoring and controlling multiple devices simultaneously. Each channel supports Form C relay contacts with two normally open (NO) and two normally closed (NC) configurations, facilitating integration with diverse control systems.

    Optimized for efficiency, the module consumes a low current of ≤ 50mA at 24VDC, minimizing energy usage without compromising performance. Its operating temperature range (-25°C to 60°C) and storage capacity (-40°C to 85°C) ensure it can operate effectively in a wide variety of industrial settings.

    Designed for ease of installation and maintenance, the ABB PCD231 B101 3BHE025541R0101 Communications I/O Module comes equipped with user-friendly interfaces and diagnostic tools, allowing for quick setup and ongoing troubleshooting.
