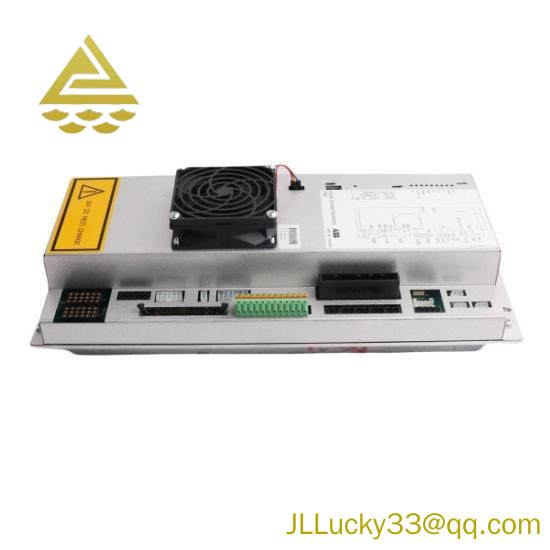

ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module, High Precision Temperature Data Acquisition

In stock

The ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module is a high-precision temperature and voltage data acquisition system, designed for industrial automation environments where reliable and accurate measurement is crucial.

Type:Thermocouple/mV Input Module

Model:3HNA026293-001

Brand:ABB

Module Designation:PDB-02

Number of Channels:16

Input Range:-200°C to +1600°C / 0mV to 100mV

Accuracy:±0.2% F.S.

Sampling Rate:Up to 500 Hz

Power Consumption:≤ 2W

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions (DxHxW):90mm x 100mm x 35mm

Weight:100g

Introducing the ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module, a reliable solution for temperature data acquisition in industrial settings. Designed with precision and durability, this module ensures seamless integration with a wide range of temperature sensors, delivering accurate readings within a broad operating temperature range of -20°C to +85°C.

Featuring two independent input channels, each capable of handling different types of thermocouples or voltage signals, this module offers unmatched flexibility in industrial automation systems. The module supports both 2-wire and 4-wire connection types, ensuring compatibility with various sensor configurations.

With a supply voltage range of 12V to 24V DC and a maximum current consumption of 20mA, the PDB-02 3HNA026293-001 is engineered to operate efficiently under varying conditions. Its compact size, measuring 90mm x 50mm x 30mm, makes it suitable for space-constrained environments without compromising performance.

Built with high-quality materials, this module is designed to withstand harsh industrial environments, offering exceptional reliability and longevity. The standard mV output signal is compatible with most industrial control systems, making it an ideal choice for applications requiring precise temperature measurement and control.

Compliant with Modbus RTU and DeviceNet protocols, the ABB PDB-02 3HNA026293-001 ensures seamless communication with other devices in your network, streamlining integration and enhancing system efficiency. Whether you’re managing temperature in a chemical plant, manufacturing line, or HVAC systems, this module provides the precision and reliability needed for optimal operation.

ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module
