Model:DSQC 313
Manufacturer:ABB
Type:Measurement Meß board
Pin Count:32
Analog Inputs:8
Digital Outputs:16
Power Supply Voltage:DC 24V
Communication Interface:DeviceNet / Profinet
Dimensions:89mm x 51.8mm x 25.4mm
Weight:50g

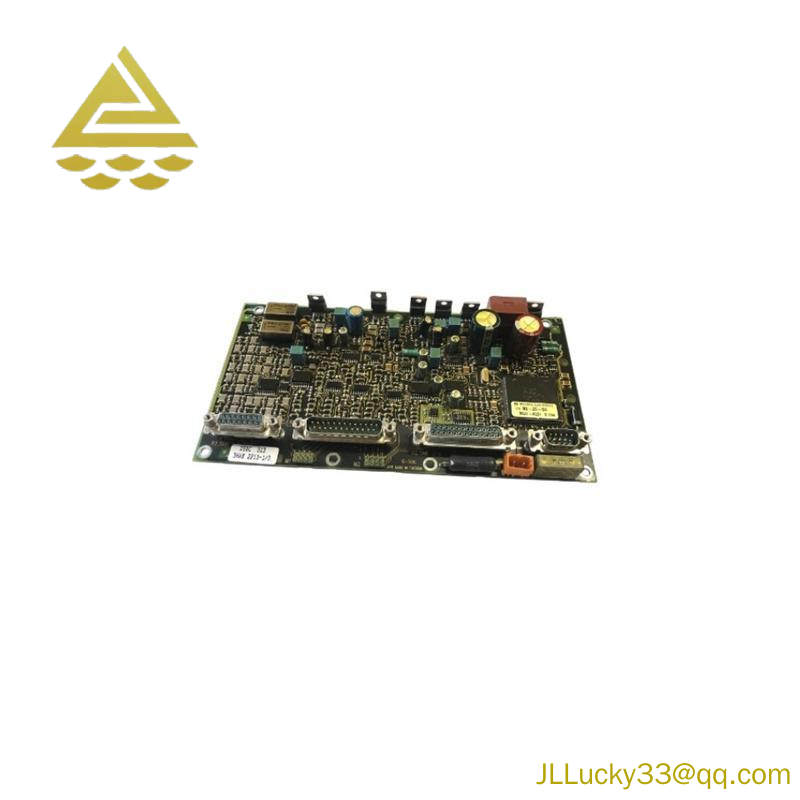

The ABB SMB DSQC 313 measurement board is engineered to meet the stringent requirements of industrial automation environments. Its advanced digital signal processing capabilities ensure high accuracy and reliability in data acquisition and analysis.
Equipped with 16 analog input channels, this board supports both voltage and current measurements, enabling comprehensive monitoring of industrial processes. The sampling rate of up to 2 kHz ensures real-time data capture without compromising on precision.
With a wide voltage range of ±10V and current range of ±20mA, the SMB DSQC 313 is compatible with a variety of sensors and instruments commonly found in industrial settings. This versatility enhances its applicability across different sectors.
Featuring an RS-485 communication interface, the board facilitates seamless integration with other ABB components and third-party devices, ensuring a cohesive control system setup. Its robust power supply of DC 24V guarantees stable operation under varying conditions.
Designed for operation within a temperature range of -20°C to +60°C, the SMB DSQC 313 is suitable for both indoor and outdoor applications, including harsh environments. Additionally, it can withstand storage temperatures from -40°C to +85°C, ensuring its reliability even when not in use.
