Brand:ABB
Model:YB560103-CD/23
Type:Axis Control Board – DCS Module
Power Supply:12V DC
Operating Temperature:-20°C to +70°C
Storage Temperature:-40°C to +85°C
Communication Interface:RS-485 Modbus RTU
Number of Inputs/Outputs:16/16
Memory Capacity:512 bytes EEPROM
Relay Output Rating:24V DC, 2A per channel
Input Sensitivity:2.5V
Response Time:≤2ms
Dimensions (WxHxD):96mm x 96mm x 35mm
Weight:0.4kg

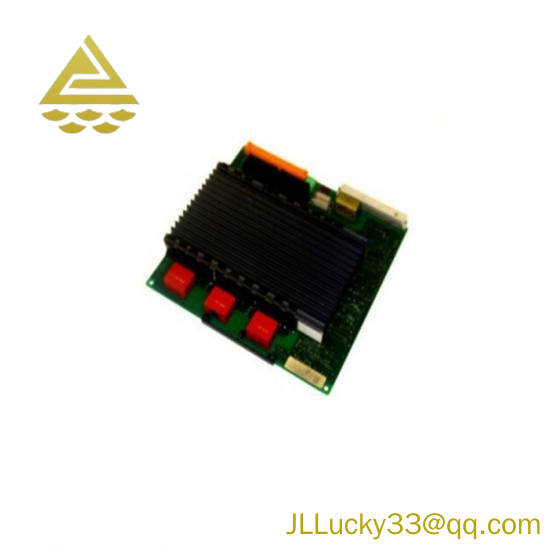

The ABB YB560103-CD/23 Axis Control Board is specifically engineered to meet the stringent requirements of industrial automation, ensuring reliable and efficient operation in a variety of applications.
Featuring a robust design with a wide operating temperature range (-20°C to +70°C), this board is suitable for use in challenging environments, from manufacturing floors to remote locations.
With its 16 input and 16 output channels, it offers flexibility in connecting various sensors and actuators, enabling precise control over industrial processes.
The onboard RS-485 Modbus RTU interface facilitates seamless communication with other control systems, enhancing system integration capabilities.
Equipped with 512 bytes of EEPROM memory, the board allows for the storage of essential data and settings, ensuring minimal downtime and quick recovery in case of power failures.
Each relay output channel is rated for 24V DC at 2A, providing the necessary power to control motors, solenoids, and other high-power devices efficiently.
