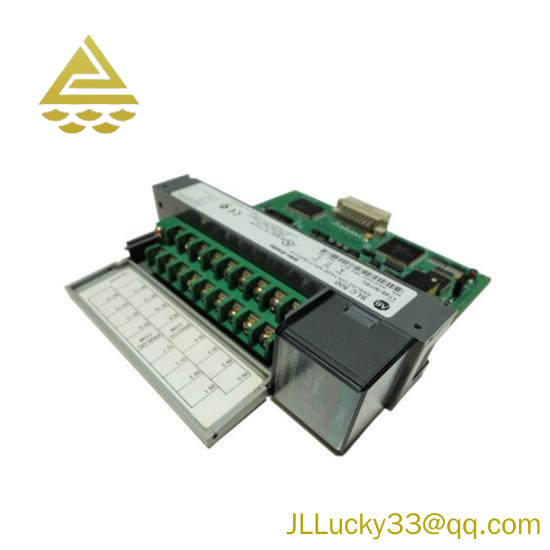

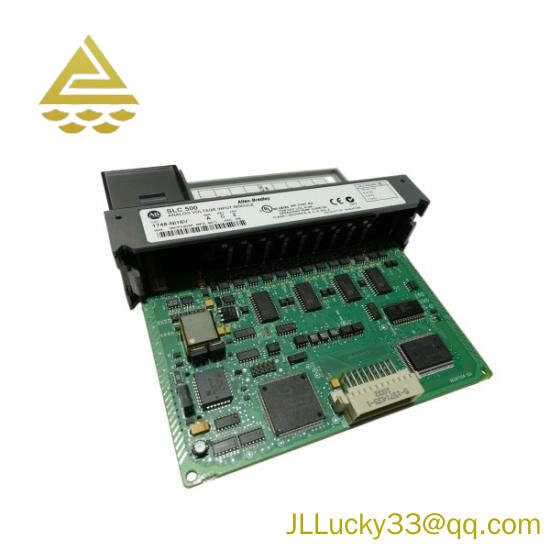

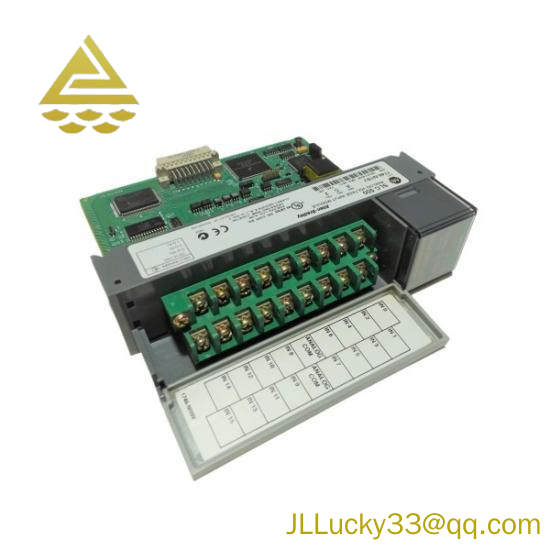

Allen Bradley 1746-NI16V – High Resolution Analog Input Module

Model Type:SLC500

Number Of Channels:16

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Overvoltage Protection:7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Voltage Rating:5 V, 24 V

Current Rating (Backplane):55 MA

Power Rating:2.425 W

Enclosure Type:Open Type

Isolation:500 VAC Isolation For 1 SEC

    Introducing the Allen Bradley 1746-NI16V, an indispensable tool for enhancing precision and reliability in your industrial control systems. This module boasts a high-resolution 16-channel analog input design, ideal for applications requiring accurate data capture and analysis.

    Crafted with robust materials and advanced technology, the 1746-NI16V ensures stable performance under demanding conditions. Its comprehensive range of features supports a wide array of industrial processes, making it a versatile choice for various applications.

    With its open-type enclosure and 500 VDC isolation, the module provides unparalleled safety and reliability, safeguarding against electrical hazards. The 35 MA at 5 V and 85 MA at 24 V current rating ensures efficient power management, while the 2.425 W power rating ensures reliable operation.

    The 1746-NI16V’s high-resolution input range from -20 to 20 V, with an absolute input voltage of +/- 7.5 VDC or 7.5 VAC RMS, offers exceptional accuracy and compatibility with diverse sensor types. Its capability to handle a broad input current range (-30 to 30 mA) makes it suitable for a multitude of measurement tasks.

    Ease of integration with Allen Bradley’s PLC systems and its compatibility with industry-standard protocols make the 1746-NI16V a seamless addition to your existing automation infrastructure. This module is designed to elevate the precision and efficiency of your operations, offering a competitive edge in the realm of industrial automation.
