Model Type:High Resolution
Number of Channels (Input):2
Number of Channels (Output):2
Input Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC or 7.5 VAC RMS (Maximum)
Input Range (Current):-20 To 20 MA
Output Range (Voltage):-10 To 10 V – 1 LSB
Voltage Rating (Overvoltage Protection):7.5 VAC RMS
Input Range (Voltage):-10 To 10 VDC – 1 LSB
Current Rating (Backplane):55 MA

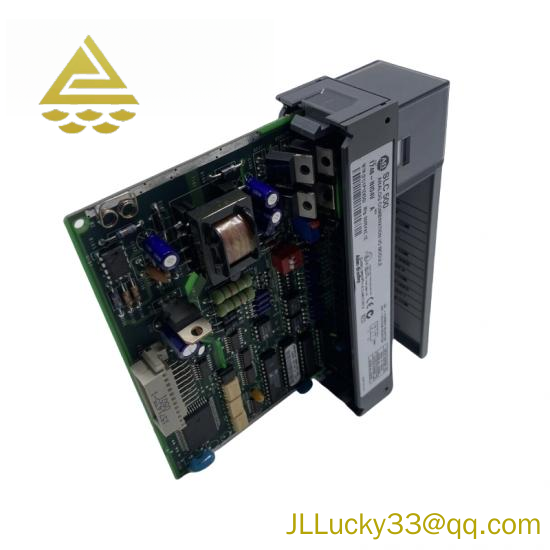

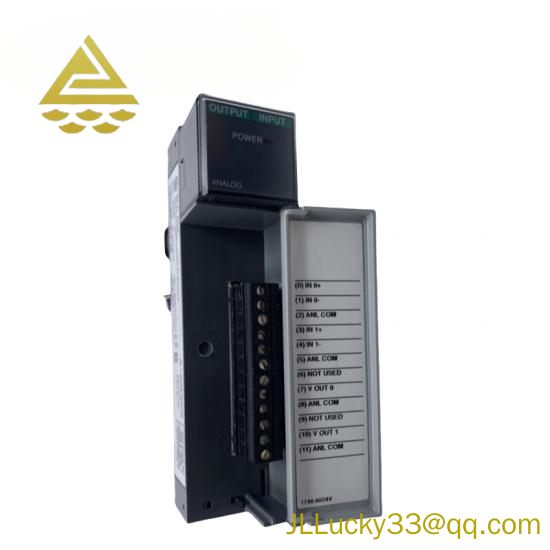

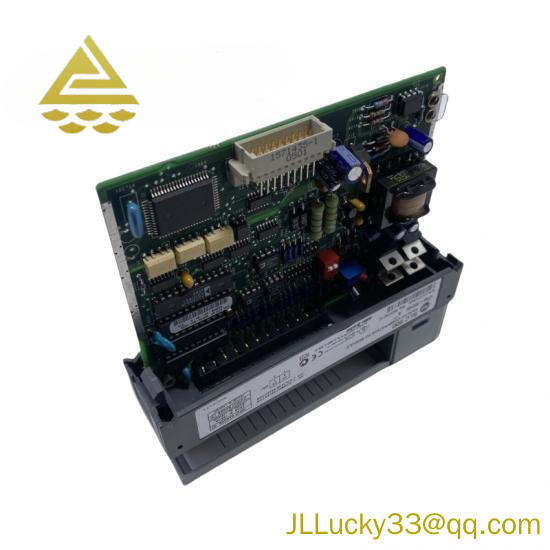

Crafted for precision in industrial automation, the Allen Bradley 1746-NIO4V module seamlessly integrates with your existing control systems, ensuring reliable and accurate signal processing.
Equipped with dual input channels capable of handling common mode voltage ranges from -20 to 20V, this module ensures robust performance across various operational conditions.
The module supports a wide current range (-20 to 20MA) on inputs and -10 to 10V output range, allowing for versatile integration into diverse industrial processes.
Backplane current draw of 55mA optimizes system efficiency, reducing power consumption and enhancing the overall reliability of your automation setup.
With 500VDC isolation between the backplane and enclosure, the Allen Bradley 1746-NIO4V provides enhanced safety and reliability, safeguarding against electrical interference and ensuring uninterrupted operation.
