Model Type:SLC500
Model Number:1746-OX8
Manufacturer:Allen-Bradley
Isolation:500 VDC communication circuits
Backplane Isolation:1500 VAC
Processor:SLC 500
Enclosure Type:Open
Mounting Type:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% RH
Input Voltage:5 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating:Backplane: 190 MA, Continuous per output: 0.25 A at 60°C, Continuous per module: 8 A at 60°C
Impedance:Greater than 1 MOHM

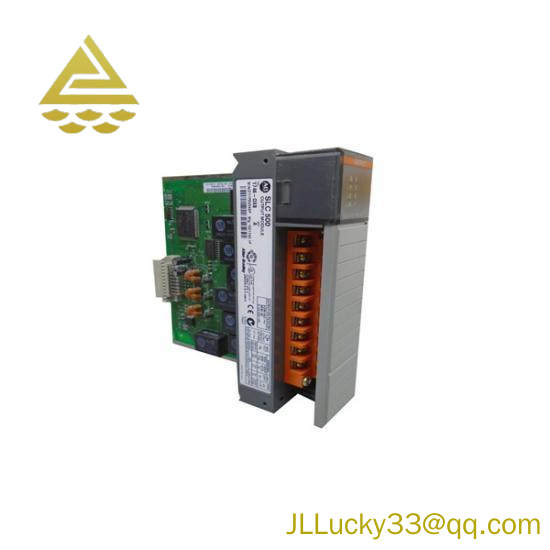

The Allen-Bradley 1746-OX8 SLC 500 Output Module is engineered for industrial automation systems, offering enhanced reliability and performance.
Equipped with isolated relay outputs, this module significantly improves system safety by preventing ground loops and ensuring signal integrity.
Featuring a compact open-type enclosure, it facilitates easy integration into various control systems without compromising on performance.
With a temperature rating from 0°C to 60°C and environmental conditions suitable for industrial environments, the module ensures consistent operation under diverse conditions.
The high isolation voltage between communication circuits and backplane enhances compatibility with different devices, making it an ideal choice for complex automation setups.
Built for efficiency, the Allen-Bradley 1746-OX8 delivers precise current ratings and voltage levels, guaranteeing optimal power distribution and minimizing energy loss.
