Model Type:SLC500
Manufacturer:Allen Bradley
Number of Channels:4
Input Voltage Range:-20V to +20V DC or -20mA to +20mA
Output Voltage Range:0V to +10V DC – 1 LSB
Input Current Range:-20mA to +20mA
Output Current Range:0mA to +20mA
Isolation Rating:Backplane: 500VDC, Enclosure: Open Type
Operating Voltage:24V DC
Current Draw:35mA at 5V, 85mA at 24V
Overvoltage Protection:7.5VAC RMS

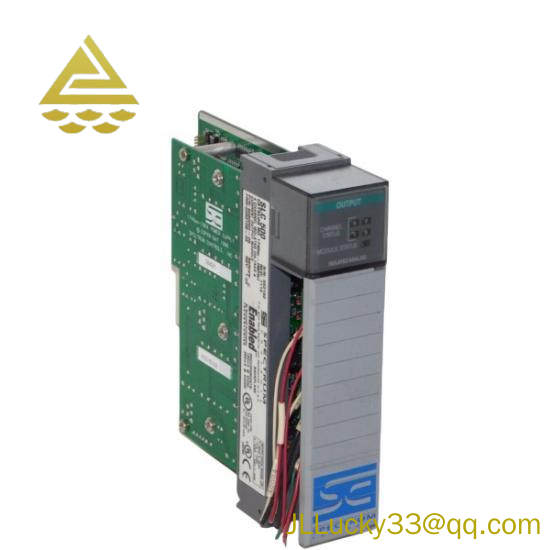

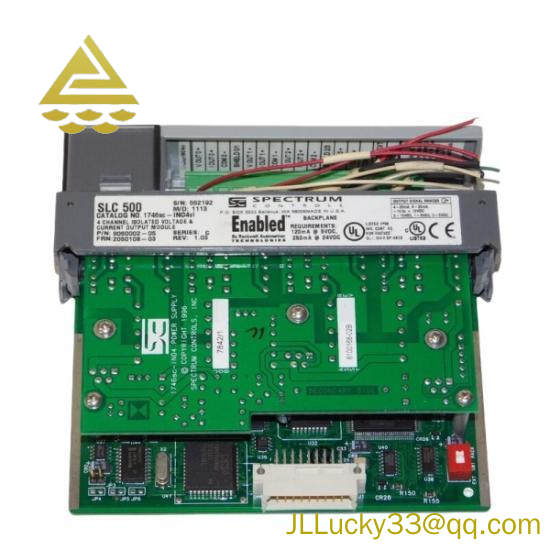

The 1746SCINO4VI is engineered with advanced signal processing capabilities that ensure accurate data acquisition from sensors and devices across various industrial settings. Its robust design withstands harsh environmental conditions, ensuring reliable performance in extreme temperatures.
Each channel supports a wide input range of -10V to +10V, allowing for precise measurement of electrical signals. The module is compatible with both analog and digital inputs, offering flexibility in integrating with different types of equipment.
Equipped with a high-speed sampling rate of 10 kHz, the 1746SCINO4VI captures rapid changes in input signals, making it suitable for dynamic processes where timing and precision are critical. The integrated Modbus RTU interface facilitates easy communication with other devices in the automation network.
With an efficient power consumption of just 1.5 W, the module operates economically while maintaining its high performance standards. It features an IP20 enclosure, protecting against dust and splashes of water, ensuring longevity in industrial environments.
For ease of installation and integration, the 1746SCINO4VI comes in a standard panel mount configuration, compatible with industry-standard DIN rail mounting systems. This not only simplifies setup but also optimizes space usage on control panels.
