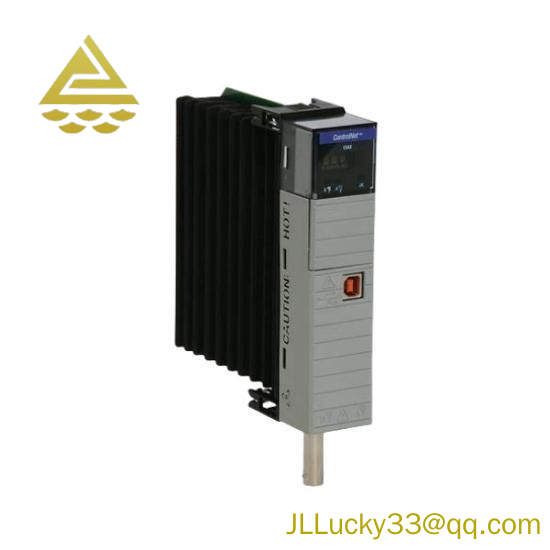

Allen-Bradley 1756-CN2RXT ControlNet Redundant Bridge Module

ControlLogix Communication Module Type:Redundant

Number of Channels:2

Current Rating at 5.1 VDC (Drawn):970 mA

Current Rating at 24 VDC (Drawn):1.7 mA

Isolation:30 V (Continuous)

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M (Sine Wave 80% AM), Conducted: 10 VRMS (1 KHZ Sine Wave 80% AM)

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Connection Type:Ethernet

USB Port:Available

    The Allen Bradley 1756-CN2RXT ControlNet Redundant Bridge Module is engineered for unparalleled reliability in industrial environments, providing seamless integration and redundancy in ControlNet networks.

    With its advanced Ethernet/IP bridge capability, this module ensures high-speed data transfer and robust communication protocols, making it ideal for complex industrial control systems.

    Featuring an open-type enclosure, the 1756-CN2RXT offers superior RF immunity through stringent radiated and conducted suppression standards, ensuring stable operation in noisy environments.

    This module supports a wide range of connection cables compliant with IEEE 802.3 standards, offering flexibility in network deployment without compromising performance.

    Equipped with a temperature rating of 0 – 60°C and a humidity tolerance of 5 – 95% non-condensing, it ensures reliable operation across various industrial conditions.

    Designed for durability and reliability, the 1756-CN2RXT withstands vibration up to 2 G and can withstand shock impacts of 30 G, making it a trusted choice for demanding applications.
