Model Type:Redundant
Number of Channels:2
Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC
Isolation:30 V (Continuous)
Basic Insulation Type:ControlNet A/B to Backplane, and ControlNet A to ControlNet B
No Isolation Between NAP or USB and Backplane:Type tested at 500 VAC for 60 sec
Enclosure:Open Type
RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Communication Protocol:Ethernet/IP Bridge
Connection Cables:802.3 compliant shielded or unshielded twisted pair
Environmental Conditions:5 – 95% non-condensing relative humidity
Vibration:2 G
Shock:30 G
Communication Speed:10/100 MBPS

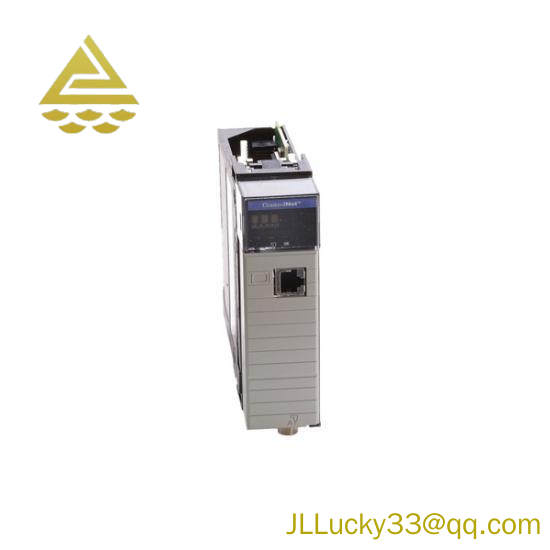

The 1756-CNB module is engineered for industrial environments requiring robust and reliable communication infrastructure. Its compact design ensures minimal footprint on the control panel, making it an ideal choice for space-constrained applications.
Featuring advanced Ethernet/IP technology, this module enables real-time data exchange between different devices within the factory floor, enhancing operational efficiency and productivity.
With support for multiple protocols including DeviceNet and ControlNet, the 1756-CNB facilitates seamless integration with a wide range of Allen-Bradley and third-party devices, ensuring flexibility and compatibility across various automation systems.
boasting a data transfer rate of up to 1 MB/s, the module ensures fast and efficient data processing, reducing delays and improving overall system responsiveness.
The module is UL, CE, and FCC certified, ensuring compliance with international safety standards and reliability in industrial settings.
