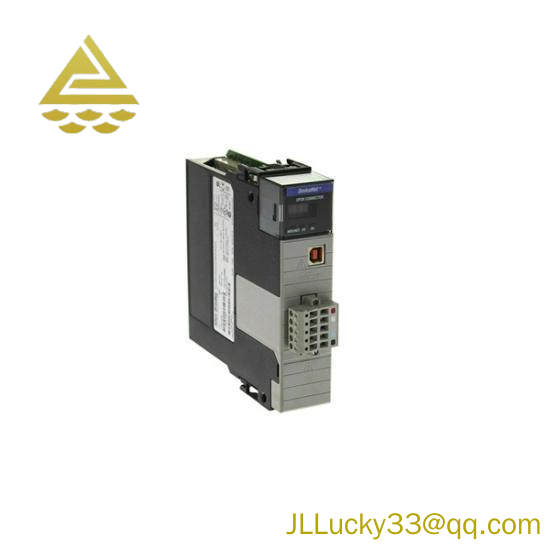

Allen Bradley 1756-DNB/C ControlLogix DeviceNet Communication Module – Advanced Networking Solution

Model Type:DeviceNet Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-DNB/C

Current Rating:Drawn: 400 mA at 5.1 V

Mounting:Chassis

Communication Protocol:DeviceNet

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 1890 MHz, 3 V/M with 1 KHZ Sine-Wave 80% AM from 2000 – 2700 MHz, Conducted: 10 VRMS with 1 KHZ Sine-Wave 80% AM from 150 KHZ – 80 MHz

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

    This ControlLogix DeviceNet Communication Module from Allen Bradley is engineered for high performance and reliability, ensuring seamless integration within industrial automation environments.

    Designed to bridge ControlLogix systems with DeviceNet networks, it significantly enhances system efficiency by optimizing data flow and improving scalability.

    With its robust RF suppression capabilities, the 1756-DNB/C ensures reliable operation even in challenging electromagnetic environments, ensuring minimal interference and optimal system performance.

    Featuring an open type enclosure, this module is built for durability and ease of installation, making it a preferred choice for a wide range of industrial applications.

    Engineered for high operational temperatures ranging from 0 to 60 degrees Celsius, the module maintains its functionality in diverse industrial settings, providing uninterrupted service under varying environmental conditions.
