Model Type:ControlLogix Communication Module
Communication Protocol:EtherNet/IP Bridge
Mounting:Chassis
Communication Speed:10/100 Mbps
Power Supply:3 MA at 24 VDC
Enclosure:Open Type
Temperature Rating:0 – 60 °C
Power Dissipation:5.1 W
Isolation:30 V Continuous
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration:2 G
Shock:30 G
Connection Cables:802.3 compliant shielded or unshielded twisted pair
Interface:Ethernet
USB Port:Not applicable

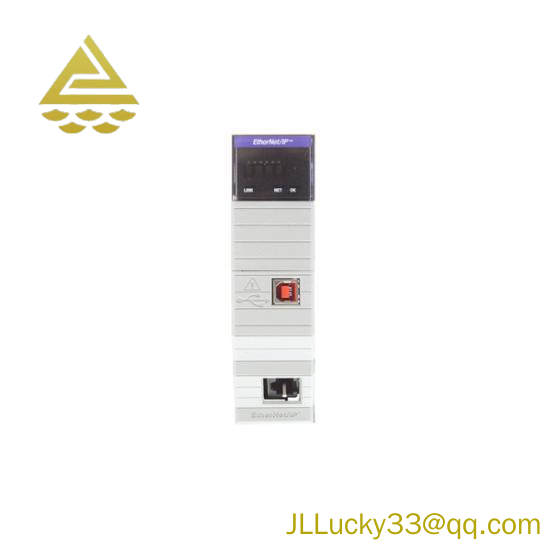

The AB 1756-EN2T/C ControlLogix EtherNet/IP bridge Module is designed for seamless integration into industrial automation networks. Its advanced features, including robust Ethernet connectivity and extensive connection management, make it an ideal choice for complex system configurations. The module supports a wide range of applications, from simple data exchanges to sophisticated control systems, enhancing operational efficiency.
With support for up to 64 TCP/IP connections and 128 Logix connections, this module ensures reliable communication between diverse devices and systems. The inclusion of 64 + 64 CIP unconnected messages (backplane + Ethernet) further optimizes data handling, making it suitable for environments requiring high throughput and low latency.
The ability to manage up to 32 multicast tags efficiently distributes data to multiple destinations simultaneously, reducing network congestion and improving overall system performance. This feature is particularly beneficial in scenarios where real-time synchronization of data across multiple nodes is crucial.
For enhanced security, the module offers SNMP support with a password requirement, safeguarding against unauthorized access. Additionally, it includes duplicate IP detection, which helps prevent network conflicts and maintains a stable operational environment.
Compliant with industrial standards and designed for compatibility with the latest software versions, the AB 1756-EN2T/C ControlLogix EtherNet/IP bridge Module is an essential component for modern industrial automation systems. Its advanced features and reliability make it a preferred choice for engineers and system integrators seeking to optimize their network infrastructure.
