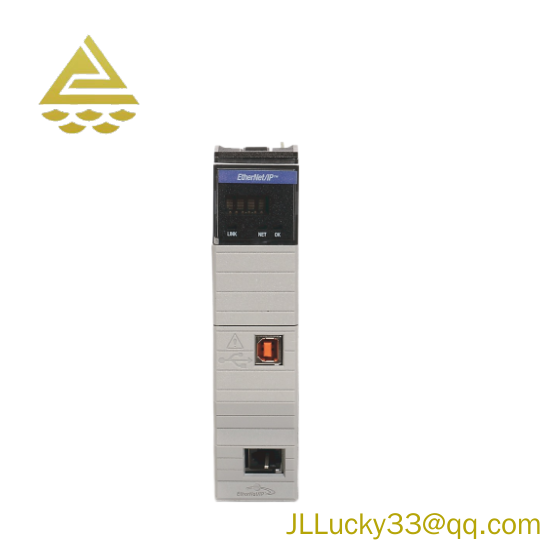

Allen Bradley 1756-EN2T/C ControlLogix Bridge Module

Model Type:Ethernet/IP Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-EN2T/C

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP

Enclosure Type:Open Type

Temperature Range:0 to 60°C

Power Consumption:5.1 W

Isolation Rating:Continuous 30 V

Environmental Conditions:5 to 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection Cable Compatibility:802.3 compliant shielded or unshielded twisted pair

Mounting Style:Chassis

    The Allen Bradley 1756-EN2T/C ControlLogix Ethernet/IP Bridge Module is designed for seamless integration within complex industrial automation networks. Its robust design ensures reliable operation under various environmental conditions, making it a preferred choice for manufacturers seeking to enhance their production line efficiency.

    Featuring high-speed Ethernet/IP communication capabilities, this module enables fast data transfer between ControlLogix PLCs and EtherNet/IP devices, streamlining processes and improving real-time monitoring capabilities. Its compatibility with 802.3 compliant cables ensures flexibility in installation and scalability in network expansion.

    With its open-type enclosure, the 1756-EN2T/C Bridge Module offers enhanced protection against dust and minor physical impacts, contributing to its durability in harsh industrial environments. The module’s isolation feature provides a barrier against electrical interference, ensuring stable communication even in noisy settings.

    The inclusion of comprehensive environmental specifications ensures that the module can withstand wide temperature ranges and resist vibrations and shocks commonly encountered in manufacturing facilities. This makes it suitable for deployment in a variety of industrial applications, from automotive assembly lines to food processing plants.

    Designed for ease of use, the Allen Bradley 1756-EN2T/C ControlLogix Ethernet/IP Bridge Module is compatible with existing Allen-Bradley PLC systems, allowing for quick integration and minimizing downtime during upgrades. Its compact size and efficient power consumption make it an economical addition to any industrial automation setup.
