Product Type:Input Module
Inputs per Module:16 single-ended inputs, 8 differential low-level inputs
Nominal Input Voltage Range:0 to 5 Volts DC, 0 to 10 Volts DC
Nominal Input Current Range:0 to 20 milliamps
Resolution:12-bit binary, 12-bits plus sign on bipolar ranges
Isolation Voltage:±1500 Volts
Maximum Power Dissipation:3.75 Watts

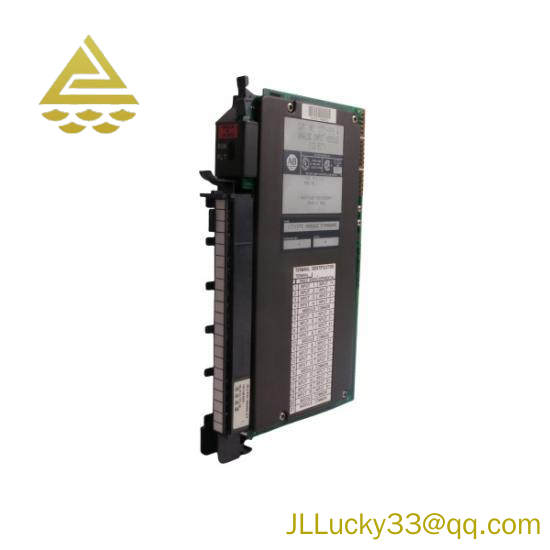

The Allen-Bradley 1771-IFE Analog Input Module is designed for demanding industrial applications, offering exceptional accuracy and reliability. It seamlessly integrates into the Allen-Bradley ControlLogix system, providing versatile input options for various sensor interfaces.
This module supports both single-ended and differential low-level inputs, catering to a wide range of industrial sensors and measuring devices. Its ability to handle 0 to 5 Volts DC and 0 to 10 Volts DC ensures compatibility with diverse signal sources.
Featuring a high-resolution 12-bit binary and an additional 12-bit plus sign on bipolar ranges, the module ensures precise data acquisition, critical for accurate process control and monitoring. The isolation voltage of +/-1500 Volts guarantees robust protection against electrical interference, safeguarding the integrity of your system.
With a maximum power dissipation of 3.75 Watts, this module efficiently manages energy consumption without compromising performance. Its compact design and modular architecture make it easy to integrate into existing control systems, enhancing operational efficiency.
The Allen-Bradley 1771-IFE Analog Input Module comes with comprehensive documentation and support, ensuring smooth installation and maintenance. Its durability and rugged construction withstand harsh industrial environments, making it a trusted choice for continuous operation in challenging conditions.
