Brand:Allen-Bradley
Series:Kinetix 6000
Module Type:Axis Module
Input Voltage:324-528V rms, 3-phase
Nominal Voltage:360 / 480V
Peak Current (RMS):15.3 Amperes
Peak Output Current (0-pk):21.6 Amperes
Continuous Output Power:3.9 kW
Internal Shunt Peak Power:5.6 KW
Internal Shunt Continuous Power:50W
Efficiency:98%
Capacitance:150 µF
Capacitive Rating:200,000 A (rms) symmetrical
PWM Frequency:8 kHz
Velocity Loop Bandwidth Frequency:500 Hz
Current Loop Bandwidth Frequency:1300 Hz
Weight:22.3 lbs (10.1 kg)
Heat Dissipation:57-126 Watts

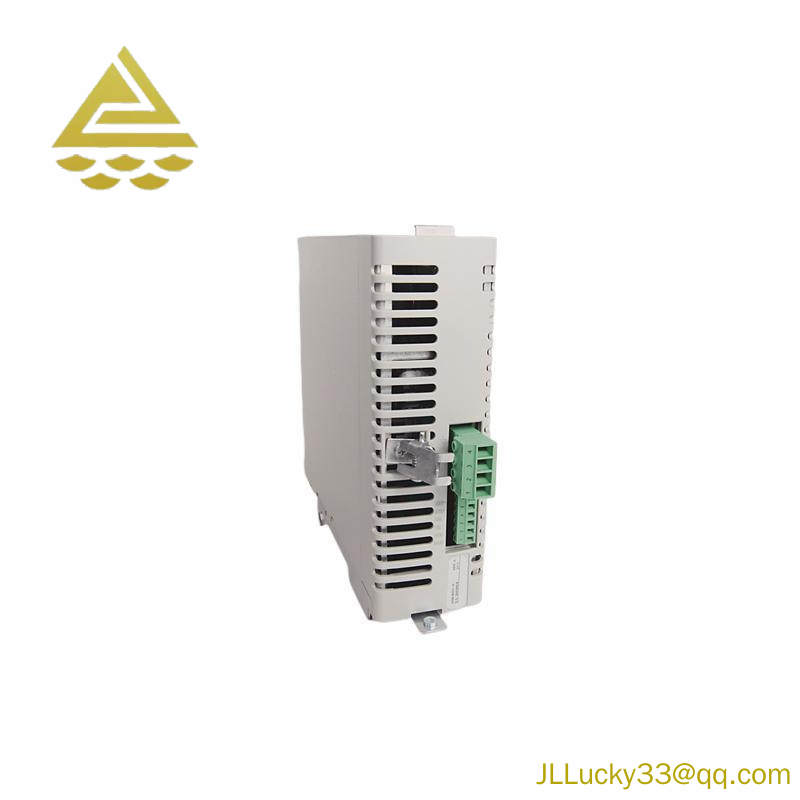

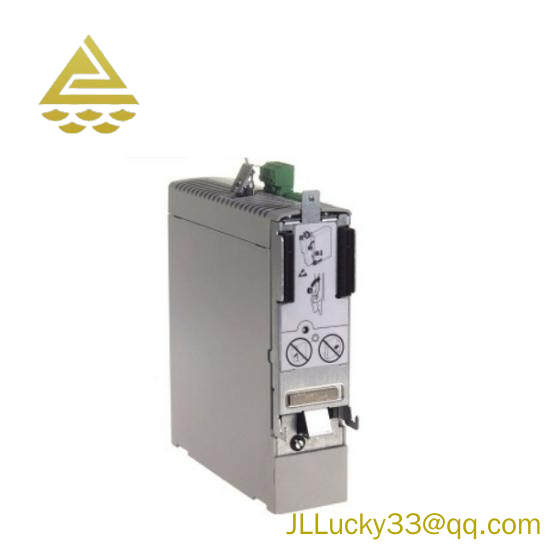

The Allen-Bradley 2094-BM01-S is a high-performance axis module designed for the Kinetix 6000 Multi-Axis Drive Servo system. This module integrates seamlessly with other components to provide efficient and reliable operation for up to seven axes per 8-axis power rail. Key features include a robust design with high efficiency, a built-in safety function, and advanced diagnostic capabilities.
Designed for demanding industrial environments, this module ensures optimal performance and minimal downtime. Its integrated Safe-Torque Off (STO) safety functionality meets stringent safety standards, including up to Safety Integrity Level (SIL) 3 and Performance Level (PLe). This makes it suitable for a variety of applications requiring high safety standards.
The module operates within a wide input voltage range of 324-528V rms, 3-phase, with a nominal voltage of 360/480V, making it versatile for different power supply conditions. With a continuous output current of 6.1A and a peak output current of 8.6A, the module delivers consistent and powerful performance.
Equipped with a high-efficiency rating of 98%, the module minimizes energy consumption and maximizes productivity. Its compact design and lightweight at just 5.6 pounds (2.54 kilograms) make it easy to integrate into existing systems without adding unnecessary bulk.
In addition to its core functions, the Allen-Bradley 2094-BM01-S offers enhanced diagnostic features, providing clear error messages that help identify and resolve issues quickly. This ensures smooth operation and minimal disruption to your production processes.
