Input Voltage (AC):100-240VAC RMS, Single Phase
Nominal Input Current (AC):18 Amps
Input Frequency (AC):47-63 Hz
Output Voltage (AC):100-240VAC
Output Frequency Range:0-400 Hz
Continuous Output Power:1 kW
Continuous Output Current:1 A
Intermittent Output Current:30 A
Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)
Weight:Not specified in documentation
Operating Temperature Range:0-55 °C (32-131 °F)
Storage Temperature Range:-40-70 °C (-40-158 °F)
Relative Humidity Range:5-95%, without condensation
Operating Shock:15 g (3 pulses, 11 ms)
Non-operating Shock:30 g (3 pulses, 11 ms)
Vibration Resistance:Can maintain optimum functionality at 2.5 g vibration

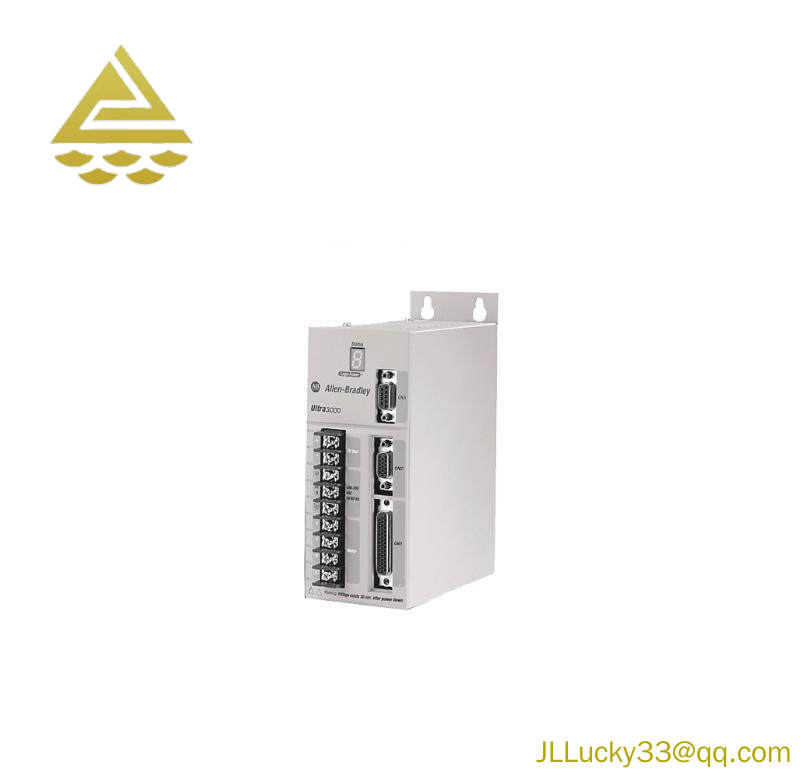

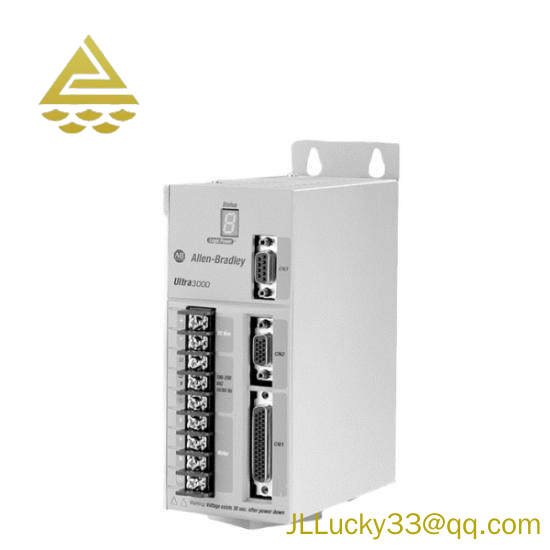

The Allen-Bradley 2098-DSD-020X is a standard digital servo drive from the Ultra 3000 product family. Designed for precise motion and positioning control, this drive seamlessly interfaces with servo motors like Allen-Bradley’s Kinetix Servo Motor series. Its robust construction and advanced technology ensure reliable performance in demanding industrial environments. Key features include a wide input voltage range of 120 – 240VAC, making it adaptable to various power sources. With a compact size of 7.8 x 5.68 x 3.89 in, this drive occupies minimal space, ideal for installations where space is limited. The drive is engineered to handle continuous output power of up to 1kW, providing ample power for a wide range of applications. The drive also supports simple indexing or preconfigured drive motions, enhancing operational flexibility. Additionally, the 2098-DSD-020X offers a continuous output current of 1A and intermittent output current of 30A, ensuring consistent and reliable performance under varying loads.
