Input Voltage:230-480 VAC, 3-phase
Frequency Range:47-63 Hz
Nominal Input Current:14 A
Root Mean Square Input Voltage:120-240 Vrms, 1-phase
Bus Overvoltage:810V DC shunt on
Continuous Output Power @ 480 VAC:10.0 kW
Continuous Output Power @ 230 VAC:5.0 kW
Shunt On Voltage:800V DC
Indexing Feature:Advanced
PWM Frequency Input:Supported
PID Control:Variable
EMC Directives Compliance:Certified
Temperature Range:0-55°C
Relative Humidity:Up to 95% non-condensing
Auxiliary Power Supply:Yes

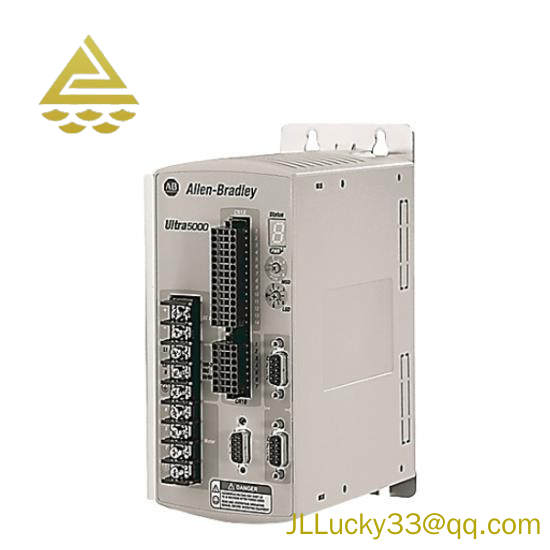

The Allen-Bradley 2098-DSD-HV220-SE is a cutting-edge high-voltage AC drive that delivers unmatched performance in industrial settings. Its robust design ensures durability and reliability under extreme conditions.
Featuring advanced indexing capabilities and precise variable PID control, this drive optimizes velocity and positioning accuracy, making it ideal for complex automation tasks. The PWM frequency input enhances its responsiveness and efficiency.
With a wide range of power outputs at both 230 Vac and 480 Vac, the 2098-DSD-HV220-SE accommodates diverse machinery needs, providing both efficiency and flexibility in energy management.
Equipped with a DC shunt resistance of 20 Ohms and capable of handling shunt voltage when powered on, the drive ensures stable operation even in fluctuating voltage scenarios. Its internal shunt resistance contributes to better current regulation and control.
The drive’s compact size, measuring 9.54 x 15.43 x 8.0 inches, allows for easy installation in tight spaces without compromising performance. Additionally, its operating temperature range of 0 to 55 °C and non-condensing relative humidity up to 95% ensure reliable operation in various industrial environments.
Certified for compliance with various drive standards and meeting all EMC directives, the Allen-Bradley 2098-DSD-HV220-SE ensures seamless integration into existing systems while maintaining high levels of safety and interference protection.
