Weight:5.1 pounds (2.31 kilograms)
Module Type:Integrated Axis Module (IAM) from the Kinetix 6000 product family
Connectors:Various including CED, IPD, CPD, MP, BC, and IOD connectors
Network Connectivity:SERCOS and DPI
Short-circuit Current Rating:200,000 Amps symmetrical
Data Retention:20 years
Power Interfaces:230 Volts rated digital input and output
Output Frequency:0 to 400 Hertz

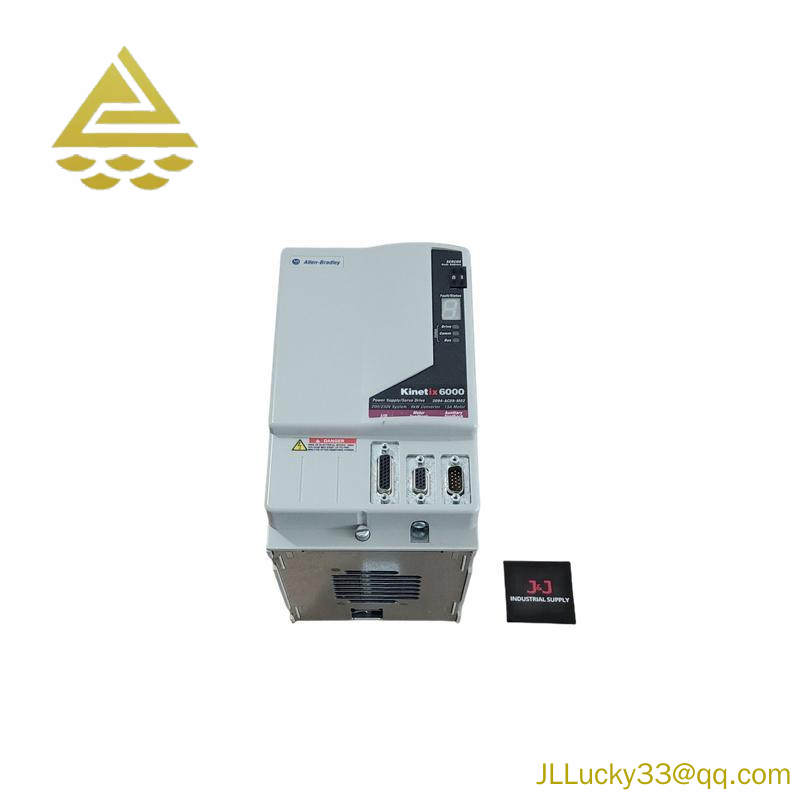

The Allen-Bradley 2094-AC09-M02 Integrated Axis Module is an essential element in the implementation of motion control systems, offering a comprehensive suite of field connections for seamless integration into multi-axis systems.
This module is designed to host a multitude of essential connections including Contactor enable (CED), DC bus/AC input power (IPD), Control power (CPD), Motor power (MP), Motor/resistive brake (BC), and I/O (IOD) connectors.
Featuring SERCOS and DPI connectivity, the 2094-AC09-M02 is capable of supporting a wide array of industrial applications, making it a versatile choice for both rotary servo motors and linear positioners.
With a short-circuit current rating of 200,000 Amps symmetrical and a memory retention capacity of 20 years, this module ensures reliability and longevity in demanding environments.
Equipped with 230 Volts rated digital input and output interfaces, the module seamlessly integrates with host PCs and PLC controllers, enhancing operational efficiency and flexibility.
The 2094-AC09-M02 is a testament to Allen-Bradley’s commitment to innovation and performance, providing a robust solution for complex machinery and automation needs.
