Input Voltage (AC):230-480V
Input Frequency (AC):47-63Hz
Nominal Input Current (AC):15A Continuous / 30A Intermittent
Output Power:1.5kW @ 230VAC / 3.0kW @ 460VAC
Bus Overvoltage:452V DC
Shunt On Voltage:420V DC
Control Specifications:[“Commutation: 3-Phase Sinusoidal, SVM”,”Current Regulator: Digital PI”,”Velocity Regulator: Digital PID”,”Position Regulator: Digital PI”]
Indexing Capability:Integral
Weight:22.96 lbs
Interface:RS232, RS485 with DeviceNet
Encoder Compatibility:Multi-turn absolute encoders

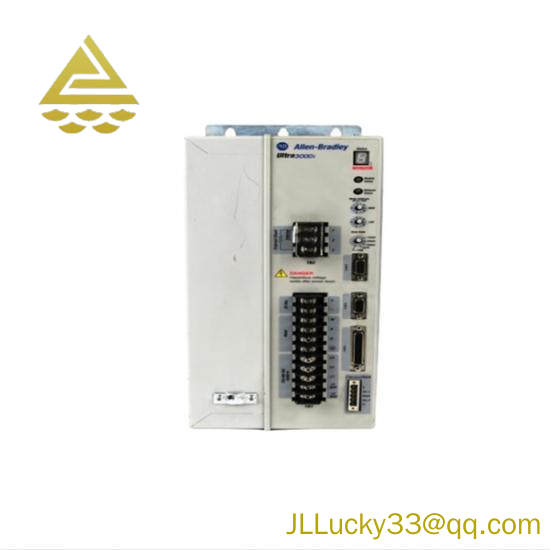

The Allen-Bradley 2098-DSD-HV150X-DN Servo Drive is a powerhouse in the realm of industrial automation, meticulously designed for seamless integration into complex machinery systems.
With an expansive voltage range of 230-480V rms, supporting 3-phase inputs, this servo drive ensures unparalleled adaptability across various industrial applications, from manufacturing lines to robotics.
Equipped with advanced commutation techniques like 3-Phase Sinusoidal and Space Vector Modulation (SVM), coupled with Digital PI and PID regulators for velocity and position control, this drive delivers exceptional precision and responsiveness.
Featuring a robust control suite that includes Digital PI Current Regulator and Digital PID Velocity & Position Regulators, it ensures consistent and accurate motion control, crucial for high-speed and high-precision tasks.
The Allen-Bradley 2098-DSD-HV150X-DN is engineered to withstand rigorous operational demands, boasting a maximum current capacity of 14A, making it suitable for applications requiring high torque and efficiency.
