Number of Inputs:8
Input Voltage:24 VDC
Response Time:4 ms
Counter Channels:3 one-channel or 2 two-channel
Encoder Compatibility:2 incremental encoders at 20 kHz
Transistor Outputs:8
Output Voltage:24 VDC
Output Current:0.5 A
Comparator Function:Yes
Short Circuit Protection:Yes
Analog Input Range:±10 V / 0 to 20 mA
Analog Input Resolution:12-bit
Analog Output Range:±10 V
Analog Output Resolution:12-bit

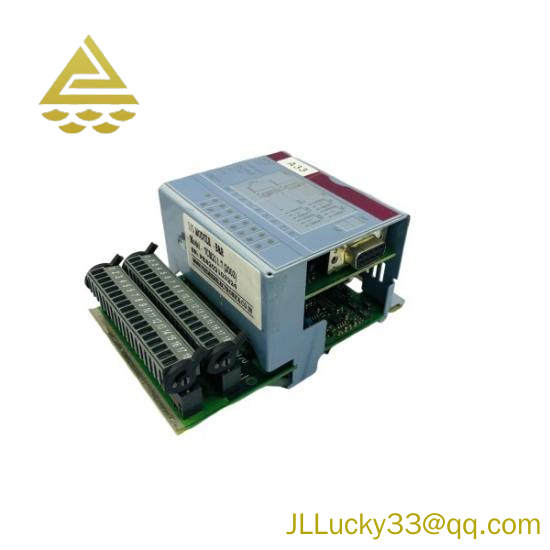

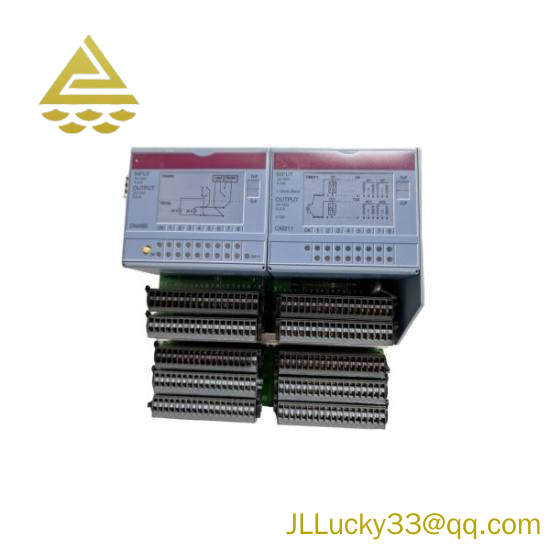

The B&R 7CM211.7 Output Module is engineered to deliver exceptional performance in industrial automation environments, offering a robust solution for both input and output control tasks.
Featuring 8 digital inputs compatible with 24V DC, this module ensures precise signal detection with a quick response time of 4 milliseconds, enhancing system responsiveness and reliability.
With the capability to support up to three single-channel or two dual-channel counters, or two incremental encoders operating at 20 kHz, it caters to a wide range of monitoring and control requirements.
Equipped with 8 transistor outputs, each rated for 24V DC and capable of handling 0.5A current, this module provides the necessary power for driving actuators, solenoids, and other devices efficiently.
The inclusion of a comparator function and short-circuit protection safeguards against potential damage from overloads or unexpected electrical conditions, ensuring operational safety and longevity.
For ease of installation and flexibility, the B&R 7CM211.7 Output Module requires separate ordering of terminal blocks (2x TB718), allowing for a customized wiring configuration tailored to specific application needs.
