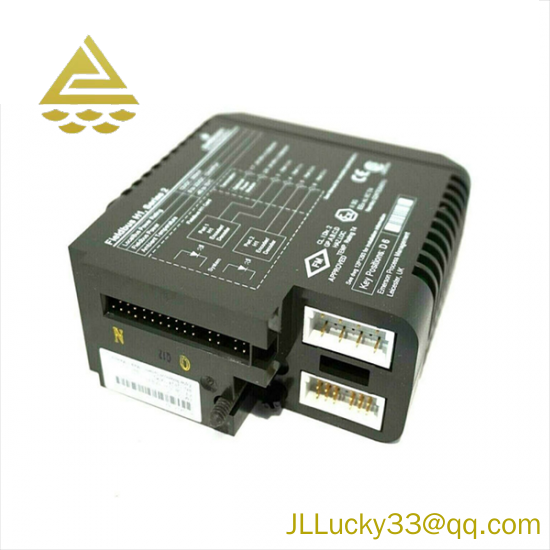

Emerson KJ3202X1-BA1 12P2536X062 High Side Output Module

Operating Voltage:24 VDC

Output Current:10 A

Maximum Switching Frequency:20 kHz

Temperature Range:-40°C to +85°C

Package Type:SMD

Relay Rating:3A @ 24VDC

Operating Ambient Humidity:5% to 95%

Electrical Isolation:500V AC (RMS) between input and output

Mechanical Isolation:1000V DC

Insulation Resistance:≥ 10 MΩ

    The Emerson KJ3202X1-BA1 12P2536X062 High Side Output Module is engineered with cutting-edge technology to deliver superior performance in industrial automation applications. Its robust design ensures seamless integration with existing systems, offering enhanced reliability and durability.

    Featuring a high switching frequency of 20 kHz, this module is capable of handling rapid changes in current, making it ideal for applications requiring precise control over mechanical systems. The high-side output configuration simplifies circuit design by reducing the risk of ground loops and ensuring electrical safety.

    Equipped with a temperature range of -40°C to +85°C, this module is suitable for extreme industrial environments, from freezing cold to scorching heat. Its compact SMD package is designed for easy assembly and integration, minimizing space requirements on the PCB.

    With a relay rating of 3A at 24VDC, the Emerson KJ3202X1-BA1 can handle substantial loads, making it a versatile choice for a wide range of industrial control tasks. The module’s insulation resistance ensures protection against electrical interference, enhancing system stability.

    Offered with a 1-year warranty, this product comes with comprehensive support, ensuring peace of mind for users. It is compatible with major PLCs and HMI systems, facilitating easy setup and integration into existing control networks. Experience the unmatched reliability and efficiency of the Emerson KJ3202X1-BA1 12P2536X062 High Side Output Module in your next industrial project.
