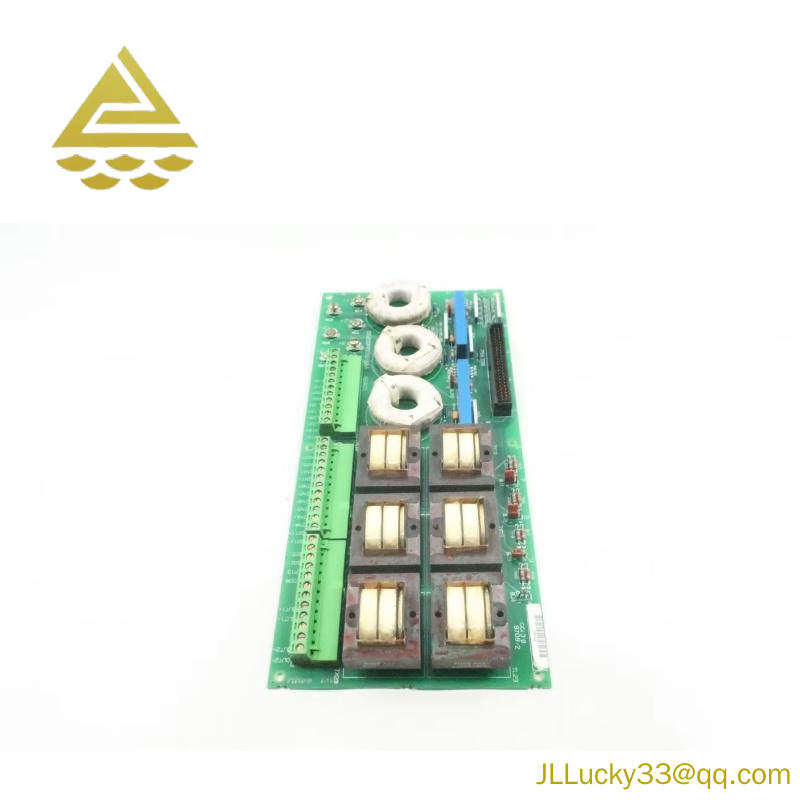

GE DS200PTCTG1BAA: Precision Signal Conditioner Board for Power and Current Applications

Model Number:DS200PTCTG1BAA

Brand:General Electric

Module Type:Signal Conditioner

Series:Mark V

Input Range:0-20mA / 4-20mA

Power Supply Voltage:12VDC

Output Type:Voltage or Current

Channels:Single Channel

Resolution:12-bit

Accuracy:+/- 0.1% of full scale

Environmental Conditions:Operating Temperature: -40°C to +70°C, Storage Temperature: -55°C to +85°C

Dimensions:145.3mm x 89mm x 63.5mm

Weight:0.46kg

Connector Type:50-pin DIN connector

Terminal Blocks:For 72 signal wires

    The GE DS200PTCTG1BAA Signal Conditioner Board is engineered to enhance the performance of industrial control systems by accurately conditioning signals from sensors and transducers.

    This board is equipped with a robust design featuring a single terminal block that accommodates 72 signal wires, providing high flexibility for various applications.

    With a 50-pin connector, the DS200PTCTG1BAA ensures reliable connection to other system components, facilitating seamless integration into existing infrastructure.

    Featuring terminal posts for an additional 6 signal wires, the board offers enhanced connectivity options for users seeking versatility in their measurement solutions.

    Designed for compatibility with the Mark V series, this board is a trusted choice for professionals requiring precision and reliability in their power and current measurement requirements.
