Alphanumeric Part Number:DS200TCRAG1A
Functional Product Description:Relay Output Board
Functional Product Acronym:TCRA
PCB Coating Style:Normal Coating
1st Functional Revision:A
Dimensions (Width x Height):8.5 inches x 11 inches
Number of Plug-in Relays:30
Number of Connectors:{“34-pin”:”4″,”12-pin”:”4″}
Connector IDs:{“JOT”:””,”JOR”:””,”JOS”:””,”JO”:””,”JS3″:””,”JS4″:””,”JS5″:””,”JS6″:””}
Artwork Revision:A
Data Sheet:GEH-6153
Weight:Due to the inclusion of 30 plug-in relays and the nature of the board’s construction.

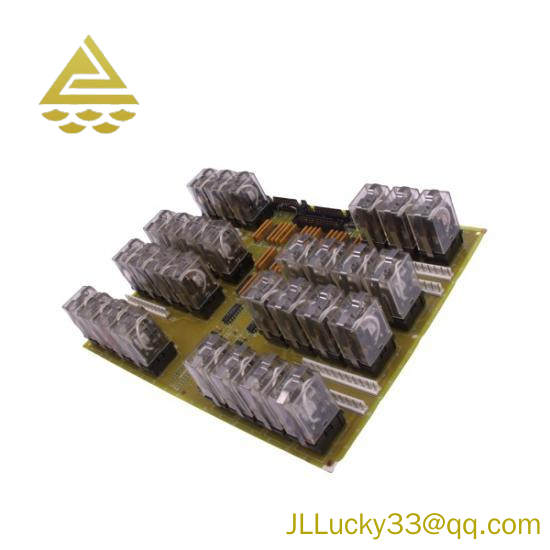

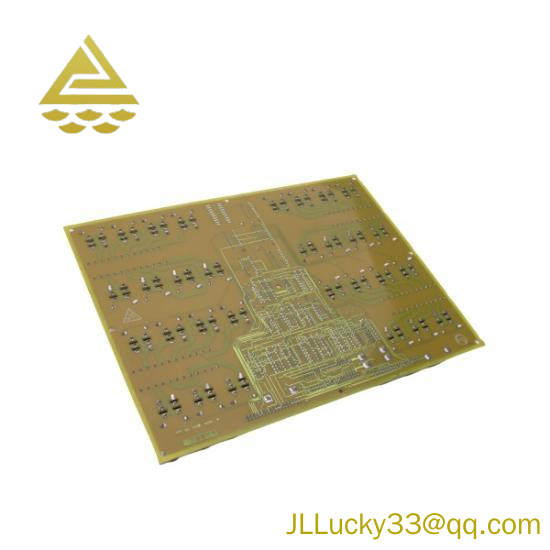

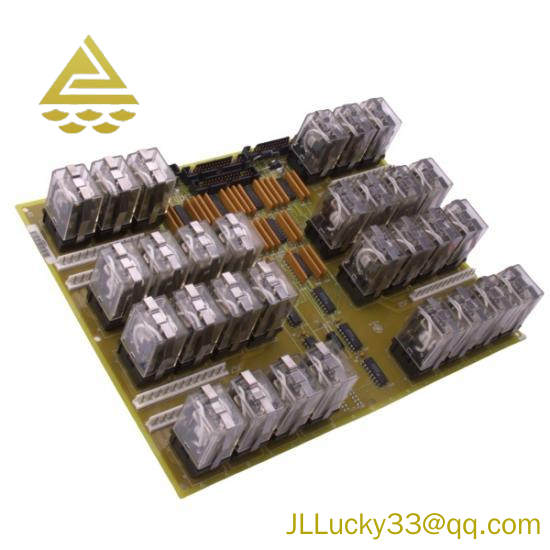

The GE-FANUC DS200TCRAG1A Relay Output Relay is engineered to provide exceptional reliability and efficiency in complex industrial environments. This product is characterized by its robust design, capable of handling high load currents and maintaining precise switching operations under various environmental conditions.
It features SPDT relay contacts, which are ideal for controlling devices that require switching capabilities between two states. With a contact rating of 5A at 240V AC and 10A at 25V DC, it ensures that it can handle a wide range of power applications.
The relay is built to withstand operational temperatures ranging from -10°C to +55°C, making it suitable for a broad spectrum of industrial settings. It also boasts a storage temperature range from -20°C to +70°C, providing versatility in storage and deployment.
Compact in size at 3.7 inches by 5.2 inches by 1.4 inches (L x W x H), the DS200TCRAG1A fits seamlessly into various control system layouts without compromising on functionality. It weighs approximately 0.8 pounds, making it easy to install and maintain.
With its adherence to international safety and quality standards, the GE-FANUC DS200TCRAG1A Relay Output Relay ensures peace of mind for users seeking dependable solutions for their turbine control systems.
