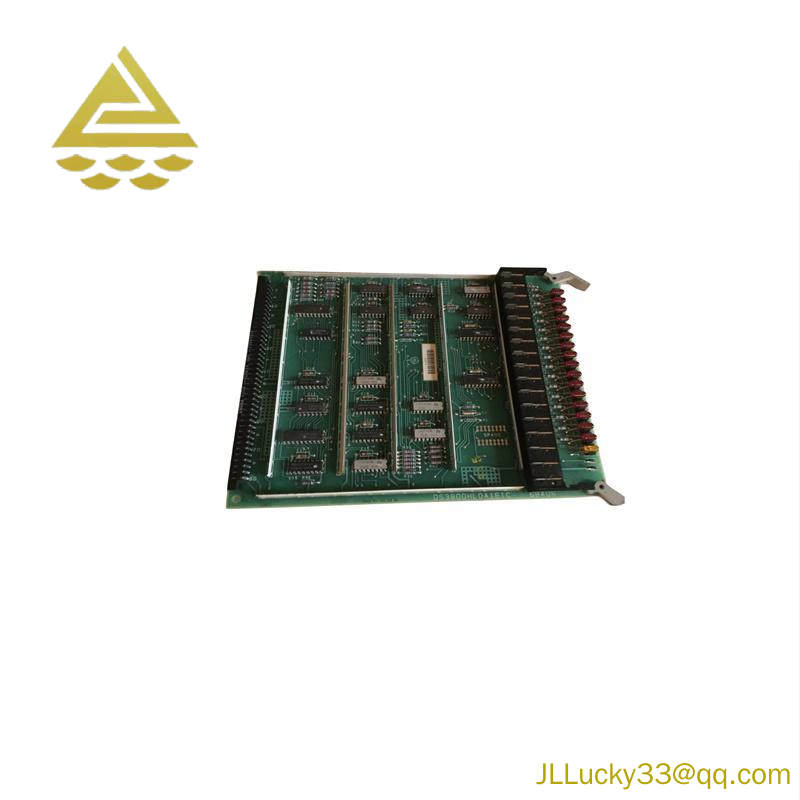

Board Model:DS3800HCVA1G
Type:Circuit Board
Brand:General Electric
Series:Mark IV DS3800
Function:Digital to Analog Output
Connector:Modular
Indicator LEDs:2 Amber
Jumpers:14
Connectors (Front):3 Accessible
Resistors:4 Trimmer
DC Voltage Regulators:2
Size:Dimensions 11x6x6.7 cm
Weight:0.14 kg
Support:Technical support from GE, including data sheets and manuals
The GE DS3800HCVA1G Circuit Board is meticulously designed for high performance in industrial control environments. Its modular connector ensures effortless attachment to drive systems, while retention levers securely hold it in place. This board boasts an array of advanced features including 14 adjustable jumpers for customizable settings and two amber indicator LEDs for operational status monitoring.
Accessible from the front of the board, three connectors offer flexible connectivity options, facilitating integration into various control systems. Additionally, four trimmer resistors provide fine-tuning capabilities for precision applications. The inclusion of two DC to DC voltage regulators ensures stable power supply and system reliability.
Manufactured with robust materials, this circuit board is engineered to withstand harsh industrial conditions, ensuring longevity and dependability. Its wide operating temperature range (-40°C to +85°C) guarantees seamless performance across diverse environments.
The GE DS3800HCVA1G is not just a component; it’s a cornerstone in the assembly of sophisticated industrial control systems. Its compatibility with standard 12VDC power supplies makes it universally applicable, streamlining the integration process for engineers and technicians alike.
For optimal performance and longevity, always refer to the original documentation provided by General Electric, which includes detailed data-sheets, manuals, and technical support resources. These materials are essential for understanding the full potential of the GE DS3800HCVA1G Circuit Board in your specific application.
