Type:Relay Module
Model Number:DS4820A1SB
Application Compatibility:Broadly compatible with GE’s EX2100 series
Operating Voltage Range:12-24V DC
Number of Relays:24
Contact Rating:10A @ 24VDC, 1A @ 230VAC
Insulation Resistance:≥1000MΩ
Operating Ambient Temperature:-10°C to +60°C
Storage Temperature Range:-20°C to +70°C
Dimensions:2.1×18.8×26.2cm
Weight:0.3kg

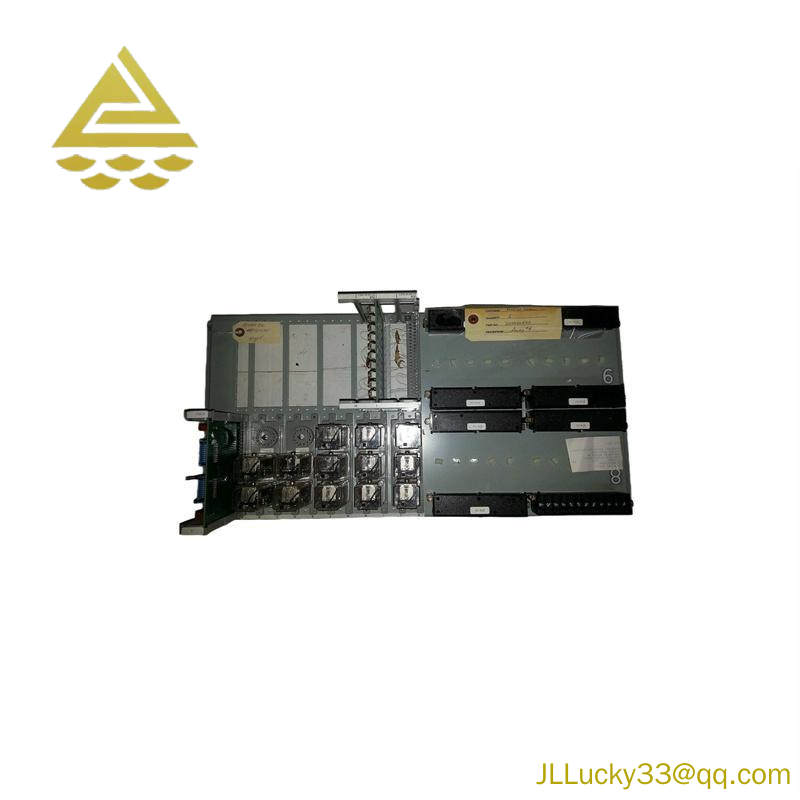

The GE DS4820A1SB Relay Module (194B5701G6) is a critical component for industrial automation systems, providing reliable and efficient switching capabilities. Its compact design and robust construction make it ideal for space-constrained environments and demanding operational conditions.
Featuring SPST contacts rated at 10 A at 24 VDC, this relay module ensures a high level of current handling capacity, suitable for a wide range of industrial applications. The silver-plated copper contacts are engineered for extended life and minimal wear, enhancing the overall performance and longevity of the system.
Operational within an expansive temperature range from -40°C to +70°C, the DS4820A1SB Relay Module ensures consistent functionality regardless of environmental conditions. Its IP20 enclosure rating offers protection against dust and non-hazardous splashing liquids, safeguarding against potential damage in industrial settings.
The panel-mount design facilitates easy integration into existing control panels, allowing for quick installation and streamlined system assembly. The module’s small footprint minimizes the need for additional space, making it a versatile solution for various applications.
With its high-speed switching capability of 1 ms, the GE DS4820A1SB Relay Module ensures rapid response times, crucial for applications requiring fast control actions. This feature, combined with its rugged design and broad compatibility, makes it an essential addition to any industrial control system, enhancing efficiency and reliability.
