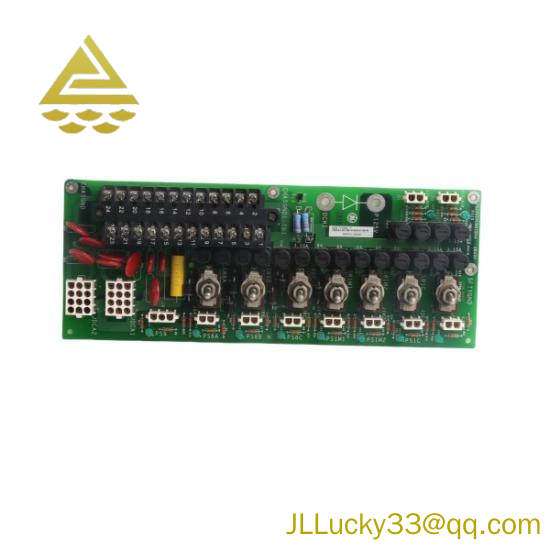

Model:IS200EPDMG1BAA
Manufacturer:General Electric
Series:Mark VI
Type:Circuit Board
Dimensions (W x L):4in x 6.5in
Faceplate Dimensions (W x H):2.25in x 4in
Weight Before Packaging:<2lbs
Ethernet Capabilities:Yes
Control Type Options:Simplex or TMR (Triple Modular Redundant)
Terminal Blocks:2
Terminal Block Locations:Bottom corner
Power Supply Capacity:N/A (Integrated)
Memory Device:Serial 1024-bit
Bus Host Processor:Parallel-style
Plug Connectors:J2 and J1
Transformer Shape:Square
Transformer Position:Centered
Electronic Component Adjacent to Transformer:DS1
Full Part Number:IS200EPDMG1BAA
The IS200EPDMG1BAA is a key component in General Electric’s Mark VI series, designed for advanced industrial control applications. It leverages state-of-the-art technology to ensure reliable and efficient operation in various industrial settings.
This circuit board boasts a robust design with a focus on enhancing connectivity and control through its Ethernet capabilities, allowing for seamless integration into modern industrial networks.
Offering flexibility in control configuration, users can choose between simplex or triple modular redundant (TMR) control options, catering to the varying needs of different industrial systems for increased safety and reliability.
Equipped with a 24Vdc isolated power supply, the IS200EPDMG1BAA ensures stable power delivery to the system, while its 1024-bit serial memory device supports extensive data processing and storage requirements.
Featuring a parallel-style bus host processor and two terminal blocks positioned in the bottom corner, the board facilitates efficient data transfer and connection to other system components, optimizing system performance and reliability.
