Model:IS200ICBDH1ACB
Series:Mark VI
Manufacturer:General Electric
Functional Acronym/Abbreviation:ICBD
Product Type:PC Board
Number of Connectors:15
Dimensions:11 x 6 x 6.7 cm
Weight:0.14 kg
Mounting:VME rack compatible

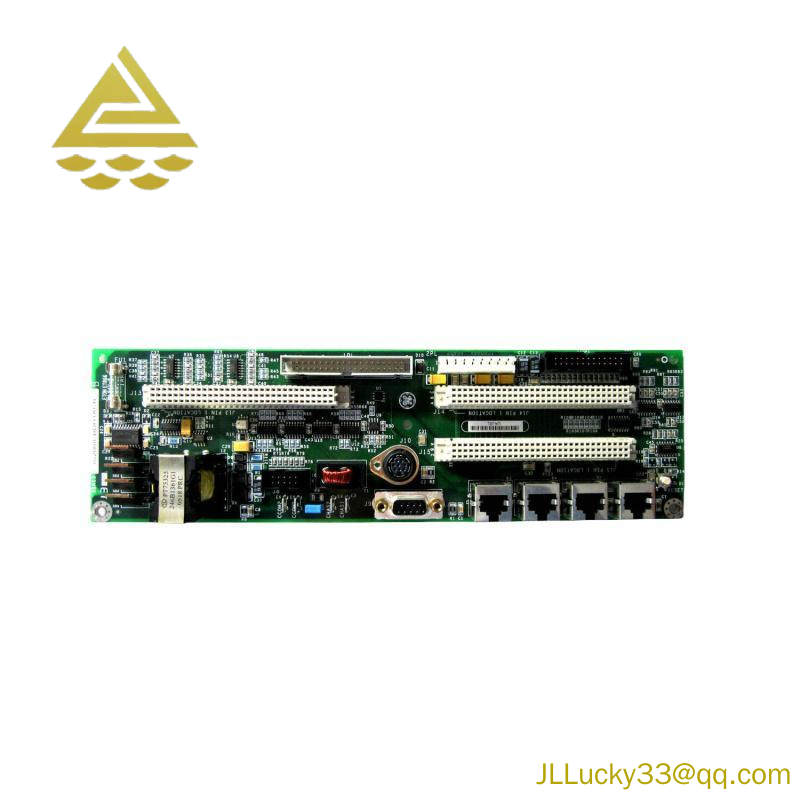

The GE IS200ICBDH1ACB is a meticulously engineered printed circuit board designed to integrate seamlessly into the Mark VI series, ensuring unparalleled performance and reliability in industrial control systems.
This board features a robust design with 10 diodes for enhanced current handling, 61 capacitors for stable power supply, and 95 resistors that maintain signal integrity across various operational conditions.
Equipped with 15 integrated circuits, an inductor coil, and a 9-pin RS-232 port, along with four Ethernet jacks labeled J11A, J11B, J12A, and J12B, it offers versatile connectivity options for seamless data exchange.
Its circular 8-pin female port allows for easy connection to additional modules or accessories, further enhancing system capabilities.
Constructed from high-grade FR-4 epoxy resin, the board is built to withstand harsh industrial environments, ensuring longevity and reliability in even the most challenging applications.
