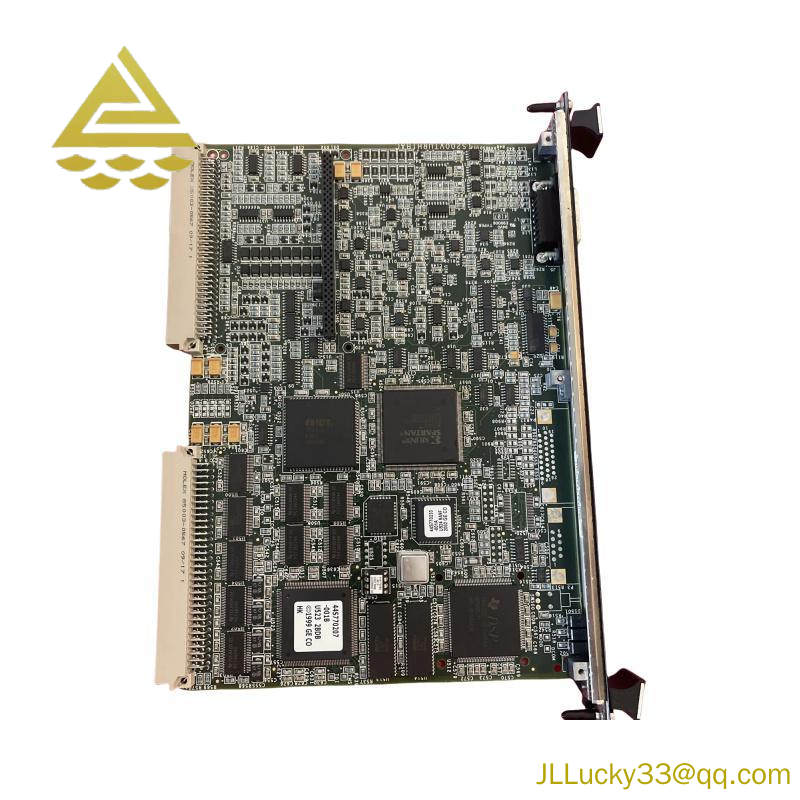

Board Number:IS200VTURH1BAC
Series:Mark VI
Manufacturer:GE Industrial Systems
Functional Acronym:VTUR
Model Type:Protection Board
Supported with:VTUR TRPG, TRPL, TREG, and TRPS
MPU Pulse Rate Range:2 Hz to 20 kHz
MPU Pulse Rate Accuracy:0.05% of Reading
Number of Trip Solenoids:3
Contact Voltage Sensing:20 V dc for HI and 6 V dc for LO
Product Model:IS200WETCH1APR2
Category:GE Boards & Turbine Control/Mark VI IS200
The GE IS200VTURH1BAC is an indispensable component for ensuring operational safety and efficiency in high-demand industrial settings. Engineered with robust triple modular redundant (TMR) architecture, this board is a critical part of the advanced Speedtronic Mark VI turbine management system.
With its primary function being the protection and monitoring of gas and steam turbines, the IS200VTURH1BAC ensures peak performance through continuous surveillance of induced shaft currents and voltages, as well as accurate measurement of turbine speeds. This allows for timely intervention and maintenance, preventing potential failures and costly downtimes.
Equipped with pulse rate accuracy of 0.05% of reading and supporting up to three trip solenoids, the board offers unparalleled precision and reliability in managing the critical operations of turbines. The integrated HMI provides real-time access to turbine data, enabling operators to make informed decisions based on actual performance metrics.
Incorporating nine interconnected magnetic relays, the IS200VTURH1BAC ensures redundancy and reliability in controlling over-speed trips. This feature is particularly valuable in preventing catastrophic turbine events, thus safeguarding the integrity of the entire industrial system.
Crafted from high-grade materials to withstand the harsh conditions typical of industrial environments, the IS200VTURH1BAC is a testament to GE’s commitment to quality and durability. Its compatibility with the Speedtronic Mark VI system makes it an easy-to-integrate solution for enhancing the operational capabilities of existing turbine setups.
