Operating Voltage:12V DC
Current Consumption:≤10mA
Data Transfer Rate:1 Mbps
Communication Protocol:RS-485
Number of Channels:16
Operating Temperature Range:-20°C to +60°C
Installation Compatibility:Panel or DIN rail
Material:Die-cast aluminum body for durability and heat dissipation
Size (WxHxD):75mm x 90mm x 27mm

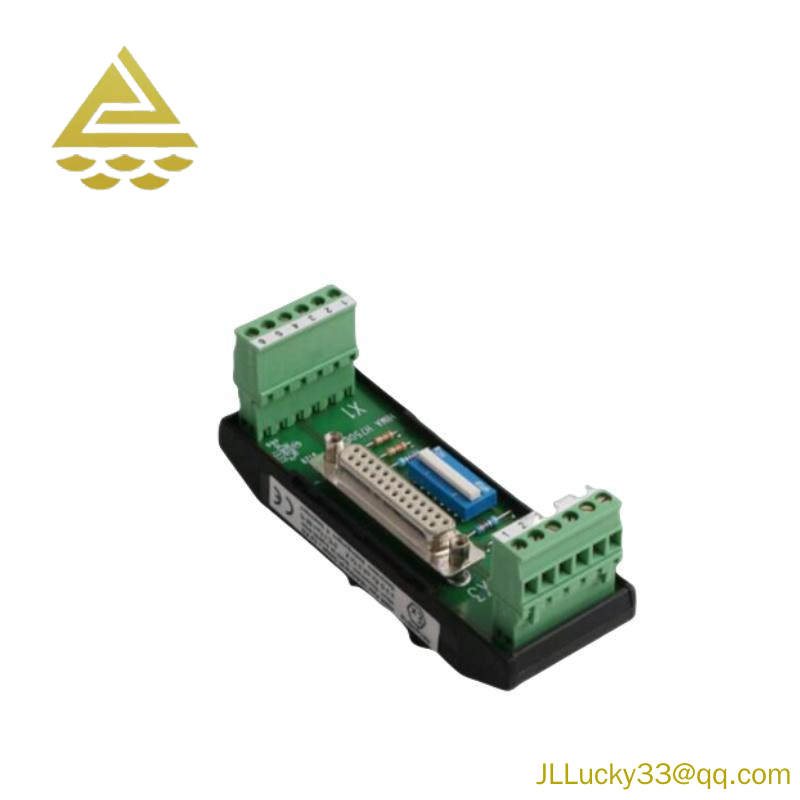

Integrating cutting-edge technology, the HIMA H7506 Bus Terminal offers unparalleled performance in data communication and power distribution. Designed for industries requiring robust and reliable automation solutions, this terminal ensures smooth operation in diverse manufacturing settings.
Featuring a DC voltage rating of 24V with a maximum current of 3A, the HIMA H7506 supports high-speed data transfer rates up to 1 Mbit/s, making it ideal for complex industrial networks. It seamlessly connects to popular bus types like Profibus DP and CANopen, enhancing its compatibility across a wide range of automation platforms.
With spring-clamp terminals for secure wiring, the HIMA H7506 provides easy installation and maintenance. Its molded plastic construction withstands harsh industrial conditions, ensuring long-lasting durability. The terminal’s compact dimensions (100mm x 100mm x 30mm) and manageable weight (0.3kg) facilitate integration into space-constrained environments without compromising functionality.
Operating within an IP20 environmental rating, the HIMA H7506 Bus Terminal is protected against dust and limited water splashes, making it suitable for industrial settings where dust and moisture are common. Its modular design allows for flexible configuration, enabling users to customize their network setup according to specific requirements.
Backed by HIMA’s commitment to quality and reliability, the HIMA H7506 Bus Terminal comes with comprehensive documentation and support services, ensuring easy setup and optimal performance. This product is an essential component for achieving seamless data exchange and power supply in today’s advanced manufacturing environments.
