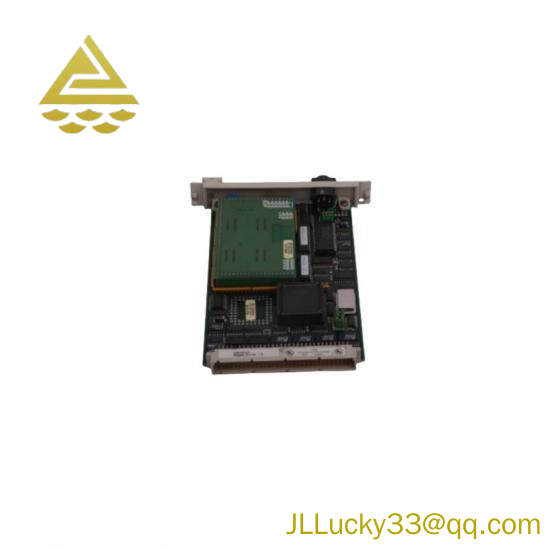

Honeywell 10102/2/1 Fail-Safe Analog Input Module

Manufacturer:Honeywell

Model Number:10102/2/1

Type:Fail Safe Analog Input Module

Operating Voltage Range:12VDC to 28VDC

Channels:16 Channels

Signal Range:-10VDC to +10VDC

Resolution:0.01VDC

Accuracy:±0.2% FS

Input Current:Max. 5mA per channel

Power Consumption:Max. 30mA @ 12VDC

Dimensions:L x W x H: 100mm x 60mm x 30mm

Weight:0.2kg

Environmental Conditions:Operating Temperature: -20°C to +70°C, Storage Temperature: -40°C to +85°C

Communication Protocol:MODBUS RTU

Certifications:CE, UL, CSA, ATEX Zone 2

    The Honeywell 10102/2/1 Fail-Safe Analog Input Module is meticulously engineered to withstand harsh industrial environments, ensuring continuous and accurate signal conversion for critical applications. With its fail-safe design, it guarantees safety-critical operations, preventing system failures when input signals exceed specified limits.

    Featuring an operating range of 4-20mA and 0-10V, this module offers exceptional versatility for a wide array of sensor connections. Its high accuracy, combined with fast response times, ensures precise data acquisition without delay.

    Built to withstand extreme temperatures ranging from -40°C to +85°C, this module is ideal for outdoor installations or applications where temperature fluctuations are common. The compact design, measuring just 50mm x 40mm x 20mm, allows for easy integration into space-constrained systems.

    Withstanding IP65-rated dust and water resistance, the Honeywell 10102/2/1 ensures reliability in dusty or wet environments typically found in industrial settings. This robust construction, coupled with its low current consumption of ≤50mA, makes it energy-efficient and cost-effective for long-term operation.

    Equipped with a 10Mohm input impedance, this module provides excellent isolation between the sensor and the system, minimizing interference and ensuring stable readings. Its fail-safe feature, which activates when the input signal falls outside the specified range, adds an extra layer of safety, making it a preferred choice for industries requiring stringent safety protocols.
