Product Type:CJ1W

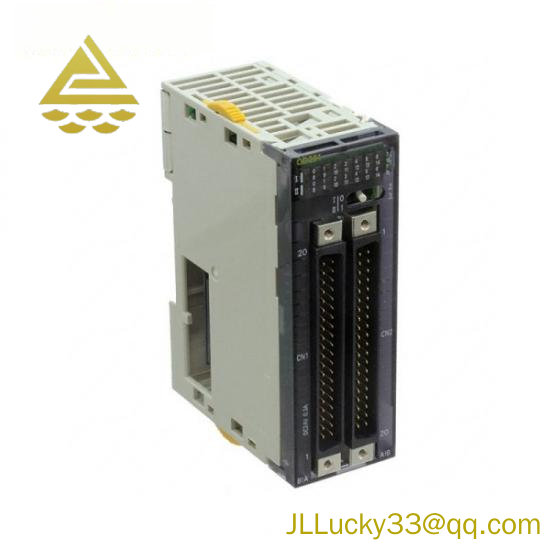

Model Number:CJ1W-OD261
OMRON Type Designation:Digital Output Module
Output Type:Solid State
Output Capacity:64 Channels
ON Response Time:15μs
OFF Response Time:80μs
Load Rating:Continuous 2A, Short-Circuit 10A
Operating Voltage:DC 24V
Operating Temperature:-10°C to +55°C
Mounting:DIN Rail Compatible
Connectors:Terminal Block
Dimensions:95x127x35mm
Weight:Approx. 100g
The CJ1W-OD261 Output Module is engineered to meet the demands of modern industrial automation systems, offering superior performance and reliability in control circuits.
Its solid-state design ensures minimal power consumption and reduced heat generation, making it suitable for use in environments where energy efficiency is critical.
The module supports various output types, allowing users to select the most appropriate configuration for their specific application requirements.
With its fast response times, the CJ1W-OD261 can quickly react to changes in input signals, improving system responsiveness and overall process control.
For users requiring higher current handling capabilities, this output module offers a choice between sinking and sourcing transistor outputs, ensuring compatibility with a wide range of loads.
The built-in load short-circuit protection feature safeguards the module against potential damage from accidental overloads, enhancing system uptime and reliability.
