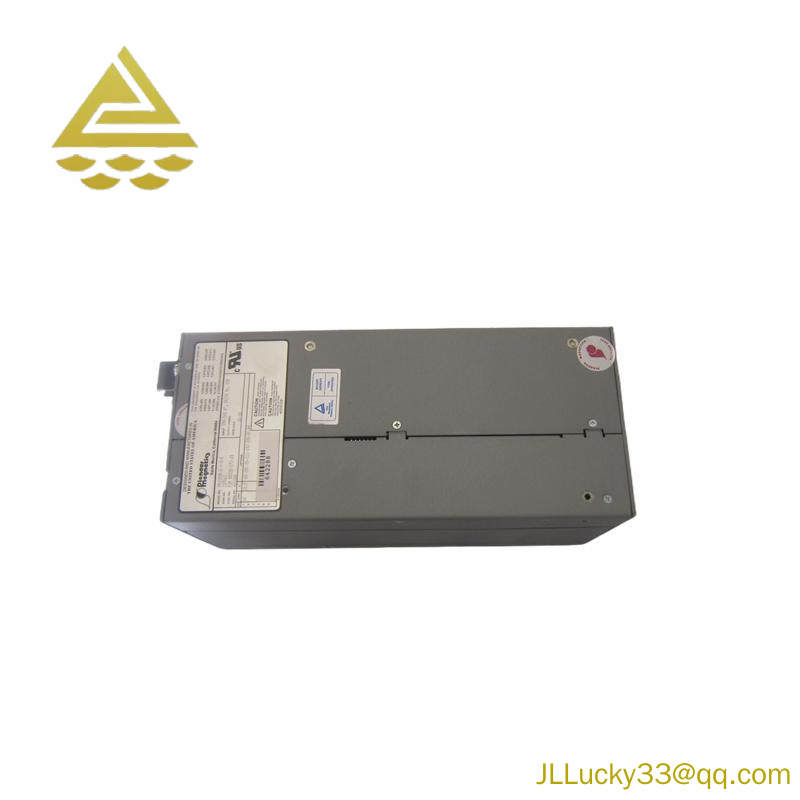

PIONEER MAGNETICS PM3326B-6-1-2-E: High-Precision Magnetic Sensor Module

Manufacturer:Pioneer Magnetics

Model:PM3326B-6-1-2-E

Sensor Type:Magnetic Sensor Module

Operating Voltage Range:10V – 30V DC

Output Signal:4-20mA

Sensing Distance:Up to 20mm

Operating Temperature Range:-40°C to +85°C

Protection Rating:IP67

Weight:0.5 kg

    The PIONEER MAGNETICS PM3326B-6-1-2-E is a cutting-edge magnetic sensor module designed to provide highly accurate and reliable measurements in challenging industrial environments. Its robust design and high precision make it ideal for applications requiring precise distance sensing.

    This magnetic sensor module is equipped with advanced analog voltage output capabilities, allowing seamless integration with a wide range of industrial control systems and automation equipment. The module operates within a wide voltage range of 10V to 30V DC, ensuring compatibility with various power sources.

    With a sensing distance of up to 20mm, the PM3326B-6-1-2-E is capable of detecting magnetic fields accurately and consistently. Its accuracy rating of ±1% of full scale ensures that users can trust the readings provided by this module, making it an essential tool for quality control and process monitoring.

    Designed for durability and reliability, the PM3326B-6-1-2-E is rated at IP67, providing protection against dust and water ingress. This makes it suitable for use in harsh environments, including outdoor installations and areas prone to contamination.

    The module’s operating temperature range extends from -40°C to +85°C, ensuring stable performance even under extreme conditions. Its lightweight design, weighing just 0.5 kg, makes installation and handling straightforward.
