Extended Product Type:Low Voltage DC Discrete Input Module
Product ID:140DDI35300
Schneider Type Designation:Modicon Quantum
Range of Product:32 discrete inputs
Group of Channels:4
Discrete Input Voltage:24 V DC
Input Voltage Limits:19.2…30 V
Input Impedance:2500 Ohms
Maximum Leakage Current:200 mA at Us = 5.5 V and Uin = 4 V
Absolute Maximum Input:Continuous 30 V, 56 V during 1.3 ms decaying pulse
Power Dissipation:1.7 W + (0.36 x number of points on)
Bus Current Requirement:330 mA
Product Weight:0.66 lb (US) (0.3 kg)

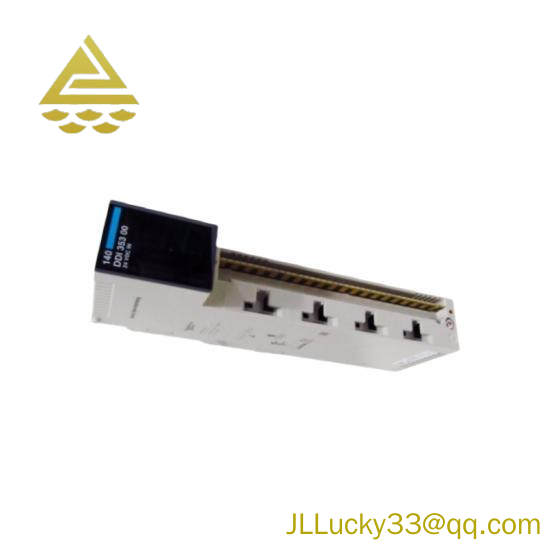

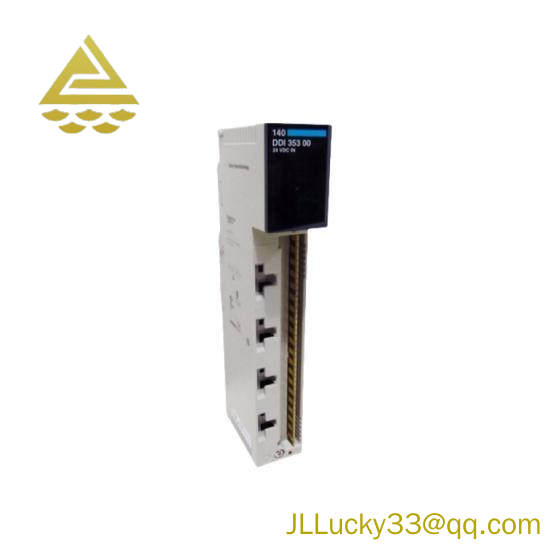

The Schneider Electric 140DDI35300 is engineered to enhance efficiency in industrial control systems. Its compact design allows for seamless integration into existing setups, supporting 32 discrete input points for versatile monitoring capabilities.
This discrete input module operates within a robust 19.2 to 30V DC voltage range, ensuring compatibility with a wide array of industrial equipment. With an input impedance of 2500 Ohms, it maintains high signal integrity for reliable operation.
Featuring a maximum leakage current of 200mA at specific voltage conditions, the 140DDI35300 ensures safety and reliability in your system. The absolute maximum input specifications further guarantee protection against overvoltage events.
Incorporating this module into your Modicon Quantum automation platform can significantly streamline your control processes. The integrated functionality supports enhanced data acquisition and processing, contributing to improved operational efficiency.
Designed for durability and performance, the Schneider Electric 140DDI35300 is backed by Schneider‘s commitment to quality and reliability. Its compatibility with low-voltage DC systems makes it an ideal choice for modern industrial environments.
