Operating Range:0-10 VDC
Input Resistance:1 kΩ
Output Resistance:50 Ω
Accuracy:+/-0.1% of full scale
Response Time:≤10 ms
Temperature Range:-25°C to +85°C
Power Consumption:≤2 W
Connection Type:M12 connector
Size:140 mm x 70 mm
Material:Aluminum housing, Stainless steel mounting brackets
Protection Class:IP65/IP67
Protocol Compatibility:Profinet, EtherCAT

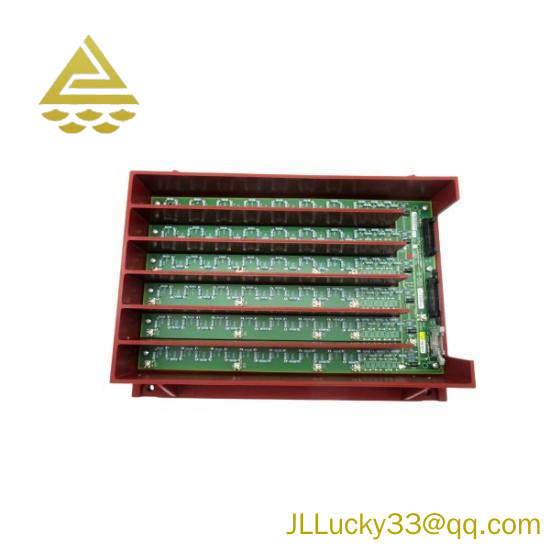

The ABB 8100-199-51-R Voltage Feedback Board is specifically engineered for applications requiring accurate voltage feedback, making it an indispensable part of advanced industrial control systems. Its robust design ensures seamless integration into a variety of industrial setups, enhancing system efficiency and operational safety.
Crafted from high-grade materials, this board is not only durable but also offers exceptional electrical insulation properties, guaranteeing reliable performance under demanding conditions. It is meticulously tested to withstand extreme temperatures ranging from -20°C to +85°C, ensuring continuous functionality regardless of environmental changes.
Equipped with a communication interface compatible with RS-485 protocols, this board facilitates easy data exchange with other components in the control system, optimizing overall system performance. The inclusion of a high-speed operating frequency up to 1MHz enables swift response times, crucial for maintaining system stability and precision.
Designed with versatility in mind, the input signal range of 0 to 10V allows for compatibility with various sensors and measuring devices commonly found in industrial settings. This flexibility ensures that the board can adapt to different measurement requirements without compromising accuracy.
In addition to its technical prowess, the ABB 8100-199-51-R Voltage Feedback Board adheres to international safety standards, including CE, UL, and CSA certifications. These certifications guarantee that the product meets stringent safety and quality benchmarks, providing users with peace of mind and ensuring compliance with global regulations.
