Technology Type:IGBT
Module Size:Standard
Operating Temperature Range:-40°C to +125°C
Max Current Rating:2500A
Max Voltage Rating:1200V
Switching Frequency:Up to 20kHz
Efficiency Rating:98%
Cooling Method:Thermal Conduction
Input/Output Connections:4-pole terminal block
Certifications:UL, CE, ISO 9001

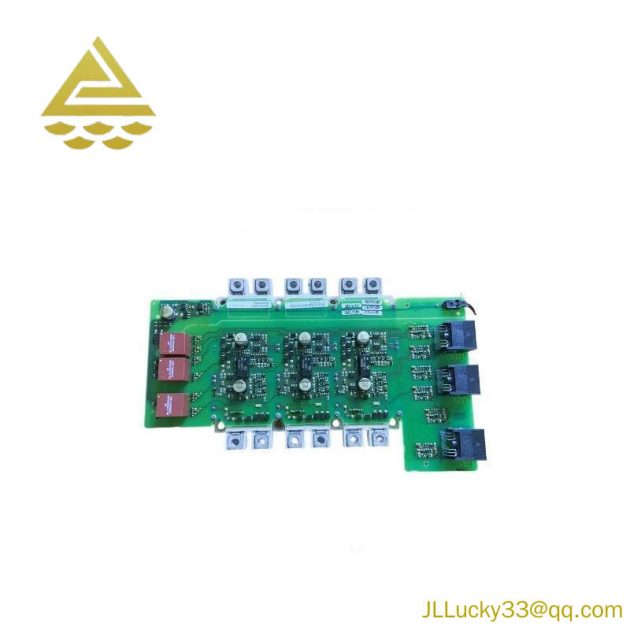

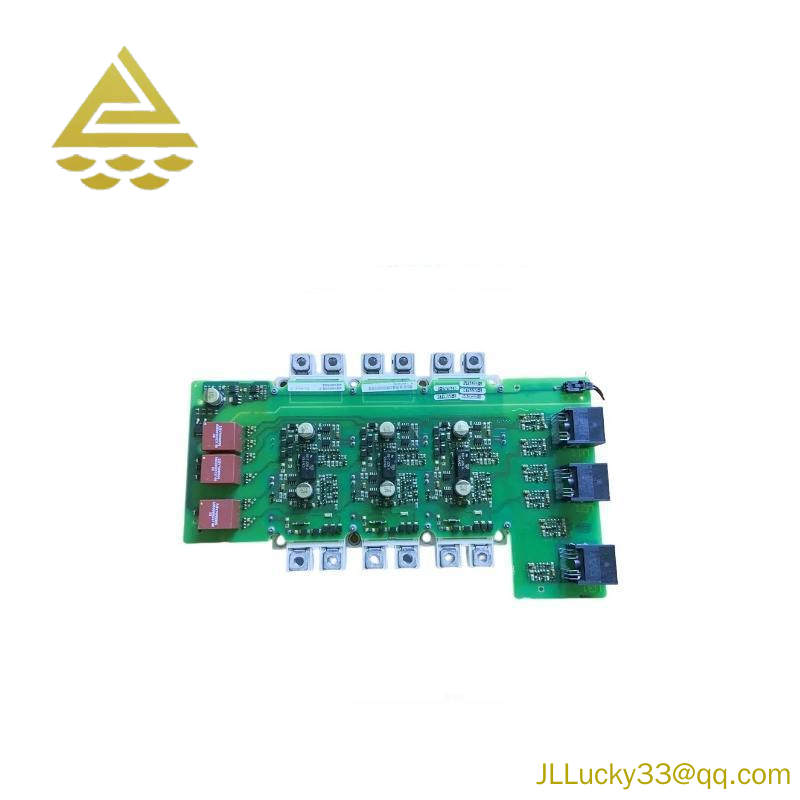

The Siemens A5E00825001 IGBT Module is engineered for unparalleled reliability and performance in demanding industrial environments. It features advanced semiconductor technology, providing precise control over power flows in motors, drives, and other energy-intensive systems.
With its wide operating temperature range from -40°C to +125°C, this IGBT module is suitable for applications across extreme conditions, ensuring continuous operation without degradation.
Designed for efficiency, the module boasts a high-rated current of 3000A and a voltage rating of 1200V, making it ideal for high-power applications where reliability and efficiency are paramount.
Equipped with a 10kHz switching frequency, the module ensures smooth and responsive operation, minimizing electrical noise and improving system stability.
The module’s robust insulation resistance of ≥ 100MΩ ensures excellent electrical isolation, safeguarding against potential short circuits and enhancing overall system safety.
For cooling, the A5E00825001 utilizes thermal conduction cooling, efficiently dissipating heat generated during operation to maintain optimal performance and prolong the module’s lifespan.
